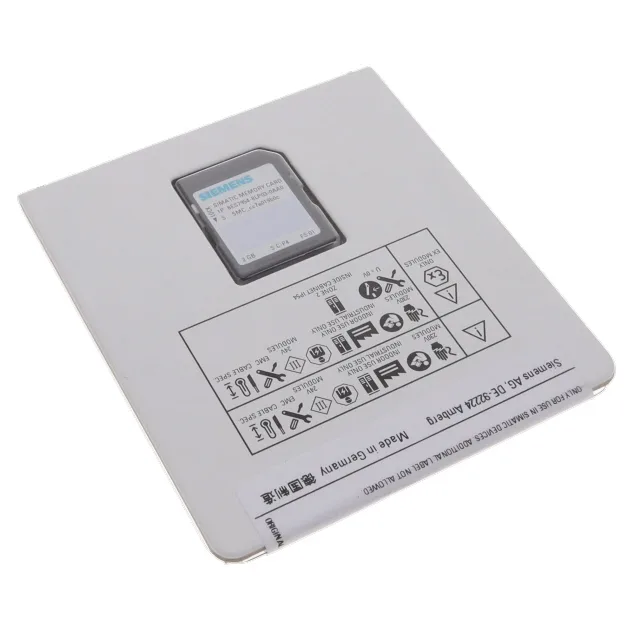

Siemens SIMATIC S7 memory card, Flash-EPROM, 2 Gbyte, for S7-1x00 CPUs, 24 x 32 x 2.1 mm.
| Parameter | Value |
|---|---|
| Depth | 2.1 mm |
| Flash | Yes |
| Width | 24 mm |
| Height | 32 mm |
| Memory size | 2 Gbyte |
| Type of memory | Flash-EPROM |
| Weight, approx. | 3 g |
| Number of write (delete operations, min.) | 100 000 |
| Data retention (after final programming action), min. | 10 a; If the delete/write processes < 10 000 (1 a if the delete/write processes > 90 000) |
The Siemens 6ES7954-8LP03-0AA0 is a SIMATIC S7 memory card built for S7-1x00 CPUs, providing 2 Gbyte of Flash-EPROM storage in a compact 24 mm x 32 mm x 2.1 mm footprint.
Rated for a minimum of 100 000 write/delete operations, with data retention of at least 10 years after the final programming action — though retention drops to 1 year if write/delete cycles exceed 90 000.
Yes, the 6ES7954-8LP03-0AA0 is a SIMATIC S7 memory card designed for S7-1x00 CPUs, which includes the S7-1200 series.
The memory size is 2 Gbyte, provided as Flash-EPROM storage.
It is rated for a minimum of 100 000 write/delete operations.
The 6ES7954-8LP03-0AA0 is the successor to the 6ES7954-8LP02-0AA0, offering a larger 2 GB capacity. Confirm CPU compatibility with your specific S7-1x00 model before ordering.
