Module Identity and Function

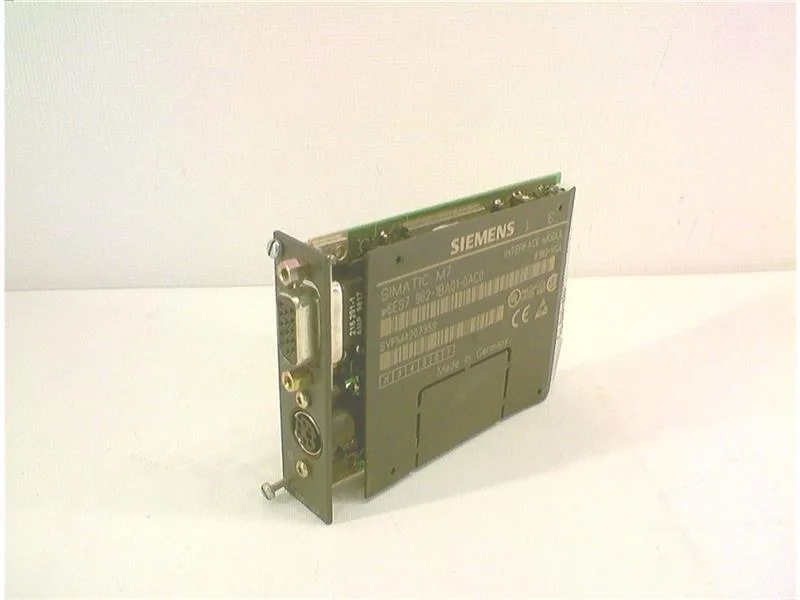

The Siemens 6ES7962-1BA01-0AC0 is a SIMATIC S7/M7 IF962-VGA VGA interface module, a PLC expansion module that provides a VGA video output from the S7/M7 backplane.
Integration Note
As a VGA interface module, it mounts in a SIMATIC S7/M7 rack and draws power from the backplane. Verify the rack slot supports the module's bus bandwidth if the VGA output is used for high-refresh operator panels.
