What this PROFIBUS connector does on a SIMATIC DP line

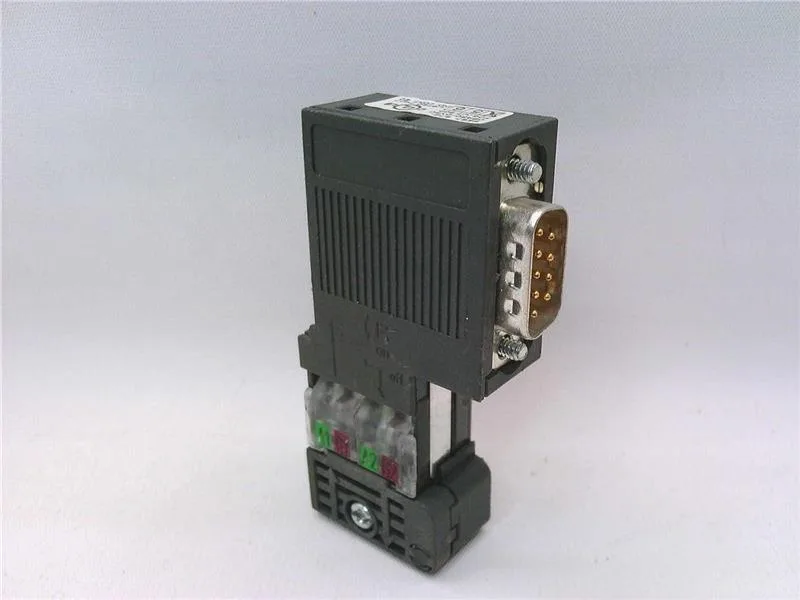

The Siemens 6ES7972-0BA50-0XA0 is a SIMATIC DP bus connector for PROFIBUS networks running up to 12 Mbit/s, with a 90-degree angled cable outlet that keeps the cable flush against the panel wall — helpful when you're packing multiple DP drops into a tight enclosure. It uses IPCD Fast Connect technology for quick termination of the PROFIBUS cable without stripping individual wires, and it omits the PG programming socket, so this variant is strictly for network connection, not for programming access.
The 90-degree cable outlet directs the PROFIBUS cable sideways rather than straight out, which saves depth on the DIN rail — useful when the connector sits behind a cabinet door or near a gland plate. Fast Connect termination means you strip the cable jacket, insert the bare wires into the color-coded slots, and close the lever; no screwdriver needed for the bus wires themselves.
