What this TS module ISDN does in a SIMATIC S7 line

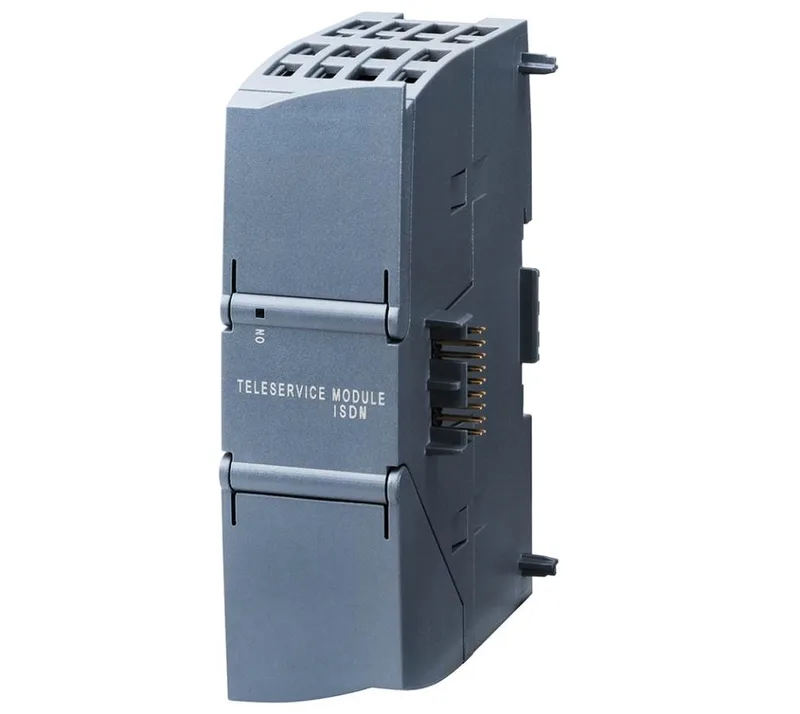

The Siemens 6ES7972-0MD00-0XA0 is a TS module ISDN for the SIMATIC S7 Teleservice system, connecting to a TS Adapter IE and drawing its power through that adapter. It's a spare part for remote service access — the ISDN link lets a technician dial into the S7 controller over the phone network for diagnostics or program uploads without a site visit.
Panel fit and integration with the TS Adapter IE
The module mounts in the SIMATIC S7 rack and connects directly to the TS Adapter IE via the front-panel RJ45 port. Power comes from the adapter, so no separate supply line is needed — just the ISDN cable to the network. The form factor is standard S7-300 width; it occupies one slot and the front connector is keyed for the ISDN interface.
