6GK1100-2AC00 - Siemens
MPN6GK1100-2AC00

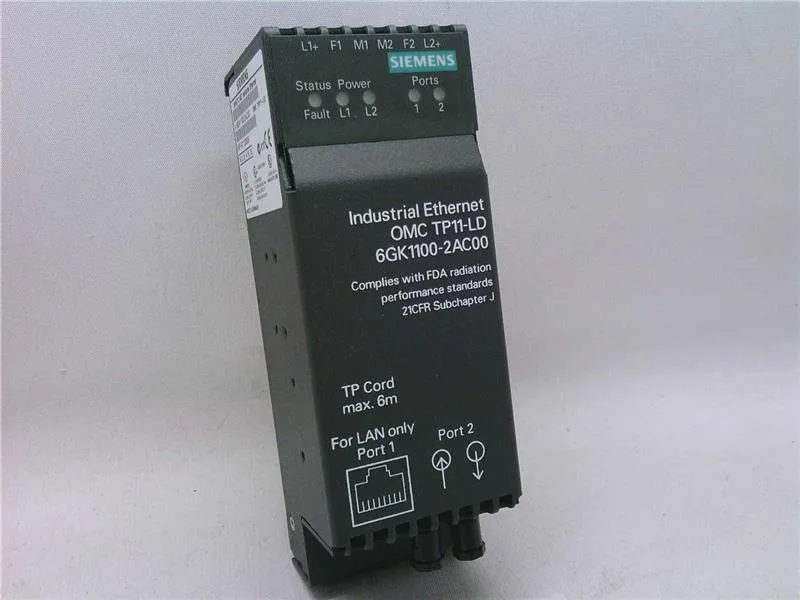

SIMATIC NET, IE OMC TP11-LD OPTICAL MEDIA CONVERTER RJ45 ON MONOMODE FOC (BFOC) WITH 100MBIT UP TO 26 KM, REDUNDANT 24V DC SUPPLY, SIGNAL CONTACT
$741.62Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Network & Ports
| Parameter | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Network ports / connectors | RJ45 socket (100 Mbit/s, 100BaseTX) for connection of TP cord or TP XP cord up to 6 m cable length |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Operating temperature range | 60 °C |
| Storage temperature range | -20 ... +80 °C |
| Transport temperature range | -20 ... +80 °C |
Mechanical
| Parameter | Value |
|---|---|
| 35 mm DIN-rail mounting | Yes |
| Height | 136.5 mm |
| Width | 54 mm |
| Depth | 69 mm |
Approvals
| Parameter | Value |
|---|---|
| CE marking | Yes |
| C-Tick (RCM, Australia/NZ) | Yes |
MPN
6GK1100-2AC00
