6GK1102-7AA00 - Siemens
MPN6GK1102-7AA00

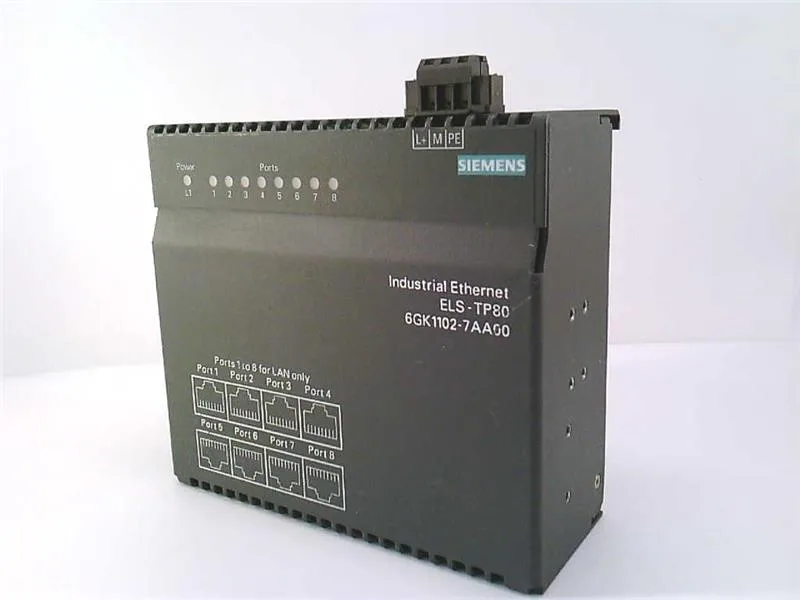

SIMATIC NET, ELS TP80 ELECTRICAL LEAN SWITCH WITH 8 10/100MBIT/S RJ 45 PORTS FOR CONFIGURING A STAR TOPOGRAPHY NETWORK 24V DC SUPPLY
$905.51Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Network & Ports
| Parameter | Value |
|---|---|
| Data transfer rate | 10 Mbit/s, 100 Mbit/s |
| Network ports / connectors | 8 |
Management & Protocols
| Parameter | Value |
|---|---|
| Web-based management | Yes |
| SNMP v1 support | Yes |
| DHCP client | Yes |
| MIB support | Yes |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Operating temperature range | 0 ... 60 °C |
| Storage temperature range | -40 ... +80 °C |
| Transport temperature range | -40 ... +80 °C |
Electrical
| Parameter | Value |
|---|---|
| Power supply connection | 3-pole terminal block |
Mechanical
| Parameter | Value |
|---|---|
| Wall mounting supported | Yes |
| Height | 136.5 mm |
| Width | 145 mm |
| Depth | 69 mm |
Approvals
| Parameter | Value |
|---|---|
| Safety approval (CSA / UL) | UL 1950, CSA C22.2 No. 950 |
| C-Tick (RCM, Australia/NZ) | Yes |
| KC approval (South Korea) | No |
Communication
| Parameter | Value |
|---|---|
| Parallel Redundancy Protocol (PRP)/operation in the PRP-network | No |
MPN
6GK1102-7AA00
