6GK1161-2AA00 - Siemens
MPN6GK1161-2AA00

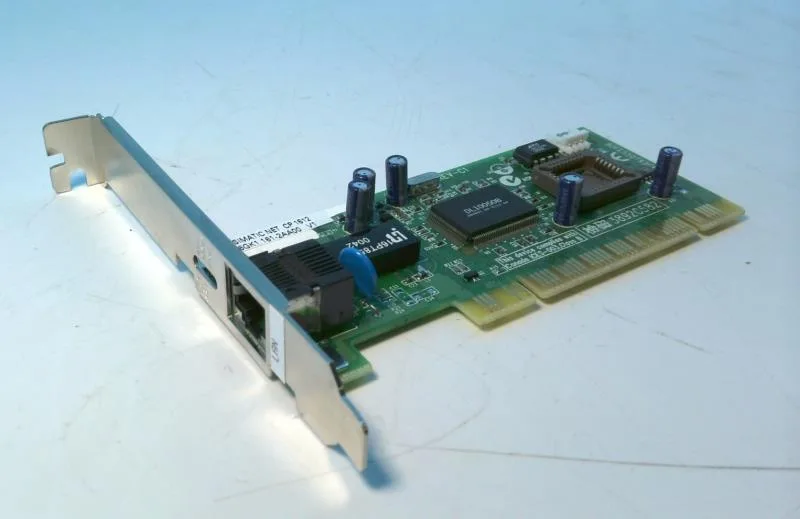

COMMUNICATION PROCESSOR CP 1612 PCI CARD (32BITS) F. CONNECTION (10/100MBIT/S)OF A PG/PC TO IE WITH RJ 45 PORT VIA SOFTNET-S7 AND SOFTNET-PG, SUPPORT FOR OPERATING SYSTEM SEE SIMATIC NET SW
$61.93Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Network & Ports
| Parameter | Value |
|---|---|
| Data transfer rate | 10 Mbit/s, 100 Mbit/s |
Management & Protocols
| Parameter | Value |
|---|---|
| SNMP v1 support | Yes |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP00 |
| Operating temperature range | 0 ... 50 °C |
| Storage temperature range | -25 ... +55 °C |
| Transport temperature range | -25 ... +55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Height | 50 mm |
| Width | 18 mm |
| Depth | 120 mm |
Approvals
| Parameter | Value |
|---|---|
| Safety approval (CSA / UL) | CAN/CSA C22.2 & UL 60950-1, UL 1950 |
| CE marking | Yes |
| EMC immunity standards | EN 61000-6-1, EN 61000-6-2 |
| EMC emissions standards | EN 61000-6-3, EN 61000-6-4 |
| C-Tick (RCM, Australia/NZ) | Yes |
| EMC standards (general) | 2004/108/EC |
Communication
| Parameter | Value |
|---|---|
| LLDP | No |
MPN
6GK1161-2AA00
