6GK1162-3AA00
MPN6GK1162-3AA00
Active

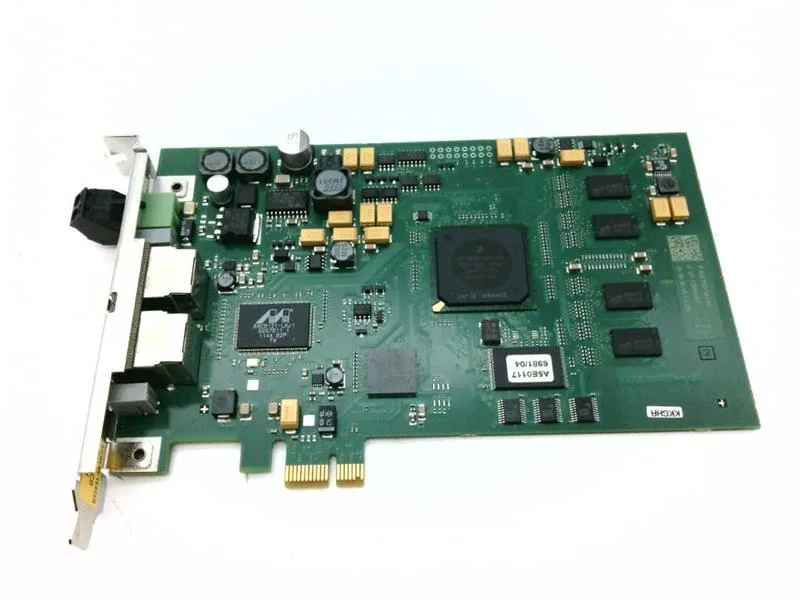

Communications processor CP 1623 PCI Express X1 (3, 3 V/12 V) for connection to Industrial Ethernet (10/100/1000 Mbit/s) with 2-port switch (RJ45) can be uploaded onto device HARDNET-IE S7 and S7-REDCONNECT operating system support see SIMATIC NET software released as of SIMATIC NET CD V7.0 HF1.
$1,153.16 – $2,999.22Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Network & Ports
| Parameter | Value |
|---|---|
| Data transfer rate | 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s |
Management & Protocols
| Parameter | Value |
|---|---|
| SNMP v1 support | Yes |
| SNMP v3 support | No |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP00 |
| Operating temperature range | 5 ... 55 °C |
| Storage temperature range | -20 ... +60 °C |
| Transport temperature range | -20 ... +60 °C |
Electrical
| Parameter | Value |
|---|---|
| Power supply connection | 2-pole terminal block |
Mechanical
| Parameter | Value |
|---|---|
| Height | 111 mm |
| Width | 18 mm |
| Depth | 167 mm |
Approvals
| Parameter | Value |
|---|---|
| Safety approval (CSA / UL) | CAN/CSA C22.2 & UL 60950-1, UL 1950 |
| CE marking | Yes |
| EMC immunity standards | EN 61000-6-1, EN 61000-6-2 |
| EMC emissions standards | EN 61000-6-3, EN 61000-6-4 |
| C-Tick (RCM, Australia/NZ) | Yes |
| EMC standards (general) | 2004/108/EC |
Communication
| Parameter | Value |
|---|---|
| LLDP | No |
MPN
6GK1162-3AA00
