6GK1571-0BA00-0AA0
MPN6GK1571-0BA00-0AA0
Active

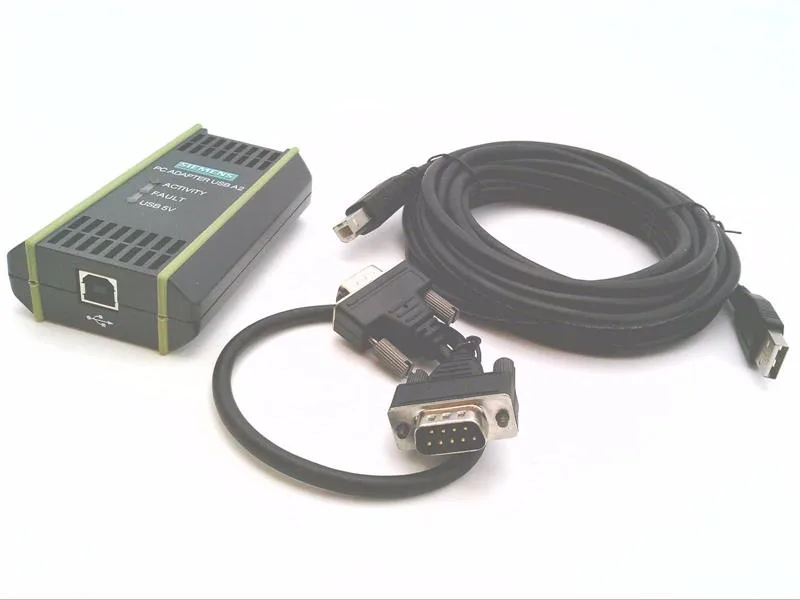

PC adapter USB A2 USB adapter (USB V2.0) for connection of a PG/PC or notebook to SIMATIC S7 via PROFIBUS or MPI contain USB cable 5 m, MPI cable 0.3 m can be used under Windows XP/Vista/ Windows 7 32/64 bit and higher.
$376.56Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Operating temperature range | 0 ... 60 °C |
| Storage temperature range | -40 ... +70 °C |
| Transport temperature range | -40 ... +70 °C |
Mechanical
| Parameter | Value |
|---|---|
| Height | 26 mm |
| Width | 58 mm |
| Depth | 105 mm |
Approvals
| Parameter | Value |
|---|---|
| Safety approval (CSA / UL) | cULus, UL 60950-1, CSA22.2 |
| CE marking | Yes |
| EMC immunity standards | EN 61000-6-1, EN 61000-6-2 |
| EMC emissions standards | EN 61000-6-3, EN 61000-6-4 |
| C-Tick (RCM, Australia/NZ) | Yes |
| EMC standards (general) | 2004/108/EC |
MPN
6GK1571-0BA00-0AA0
