What this module does that a bare PROFIBUS port cannot

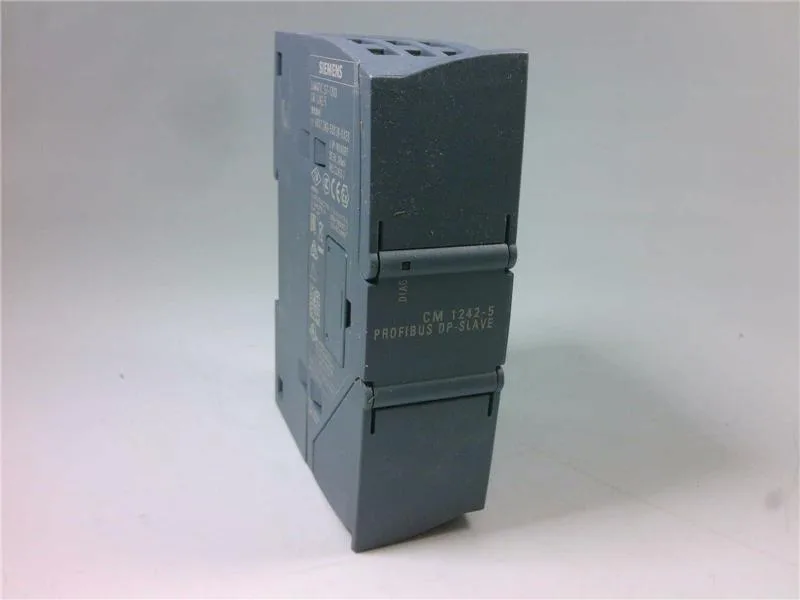

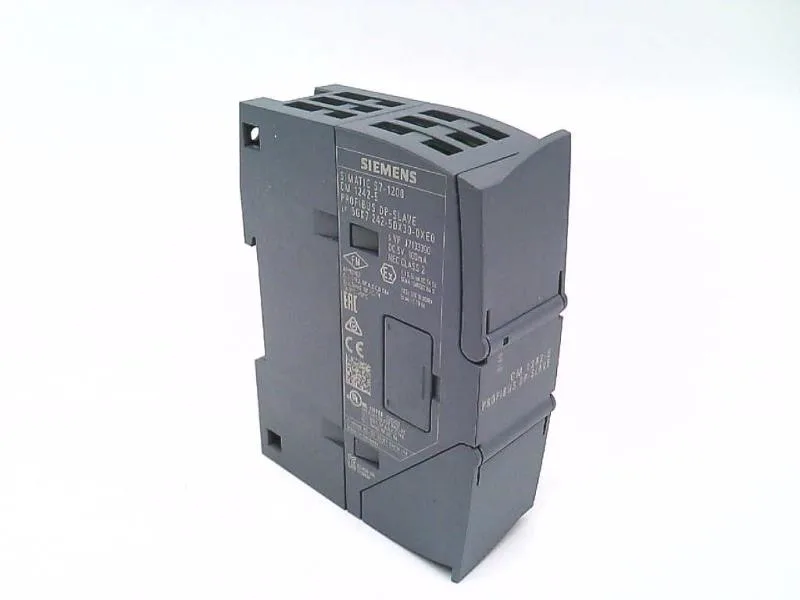

The Siemens 6GK7242-5DX30-0XE0 is the CM 1242-5 communications module that connects a SIMATIC S7-1200 CPU to a PROFIBUS DP master as a slave. It supports DPV0 and DPV1 messaging.
Physical fit and backplane loading

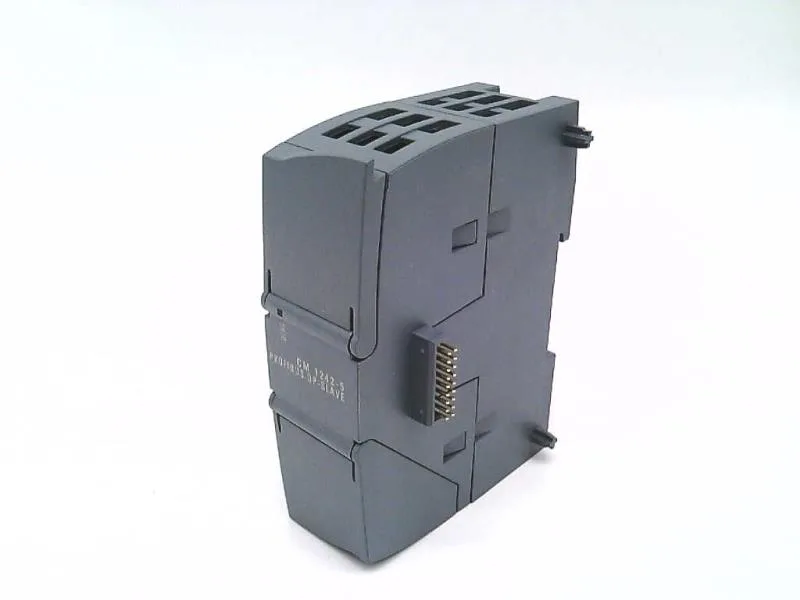

This is a compact single-width S7-1200 module — 75 mm deep, 30 mm wide, 100 mm tall — that snaps onto the standard 35 mm DIN rail alongside the CPU and other signal modules. It draws 0.15 A at 5 V from the backplane bus, which is well within the S7-1200 CPU's internal power budget; no external supply needed. The PROFIBUS interface is a 9-pin Sub-D socket (RS485) on the module face. Up to three CM 1242-5 modules can be installed per CPU, so a single S7-1200 can appear as three separate DP slaves on the same bus. IP20 rated — intended for a closed control cabinet, not a washdown environment.
