The 6GK7243-1GX00-0XE0 module for SIMATIC S7-22X, adding Industrial Ethernet connectivity. Single RJ45 port at 10/100 Mbit/s, 24 V DC external supply plus 5 V from backplane bus at 0.06 A typical. IP20, double-width S7-200 form factor. STEP 7-Micro/WIN V3.2 SP3 or higher required for configuration. Supports FTP client/server, HTTP server (up to 4 clients), email client, and web-based diagnostics. Flash file system of 8 MByte with 100,000 write cycles.

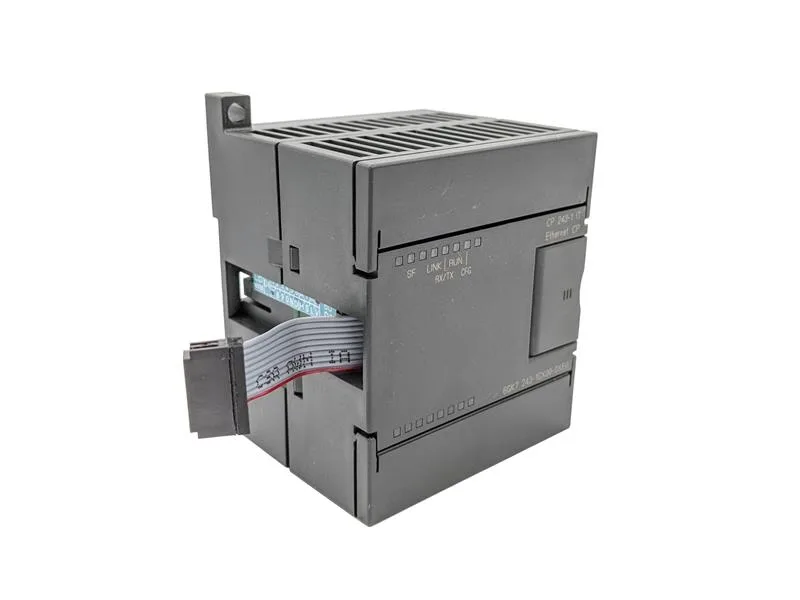

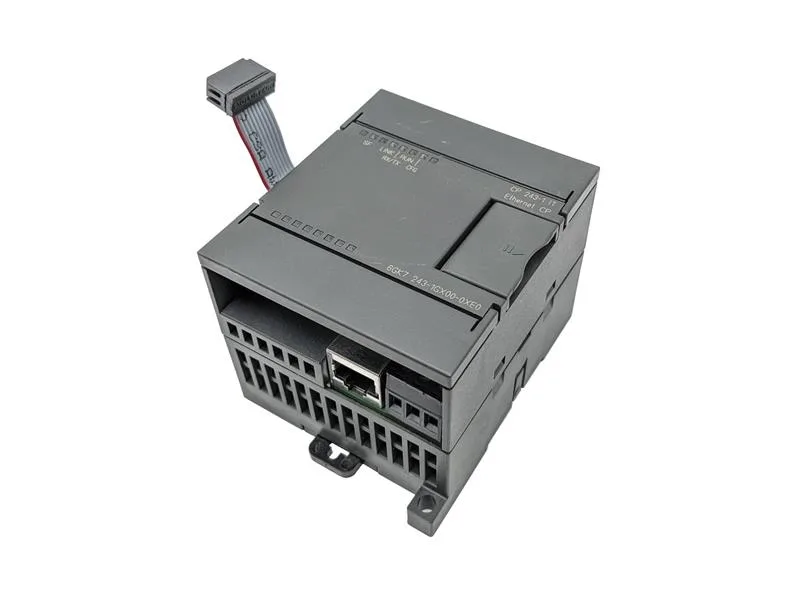

Siemens 6GK7243-1GX00-0XE0 CP 243, Ethernet for S7-200
MPN6GK7243-1GX00-0XE0
Siemens CP 243 6GK7243-1GX00-0XE0, communications processor for SIMATIC S7-22X, Industrial Ethernet with 10/100 Mbit/s RJ45, 8 MByte flash, 24 V DC.
$308.61Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Communication
| Parameter | Value |
|---|---|
| TCP/IP support | Yes |
Environmental
| Parameter | Value |
|---|---|
| IP protection degree | IP20 |
| Storage temperature range | -40 ... +70 °C |
| Transport temperature range | -40 ... +70 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 71.2 mm |
| Height | 80 mm |
| Depth | 62 mm |
Product details
Frequently asked questions
What are the key specifications of the 6GK7243-1GX00-0XE0?
It is an Industrial Ethernet communications processor with one RJ45 port at 10/100 Mbit/s, 24 V DC supply, 8 MByte flash file system, IP20 protection, and a double-width S7-200 module format.
MPN
6GK7243-1GX00-0XE0
