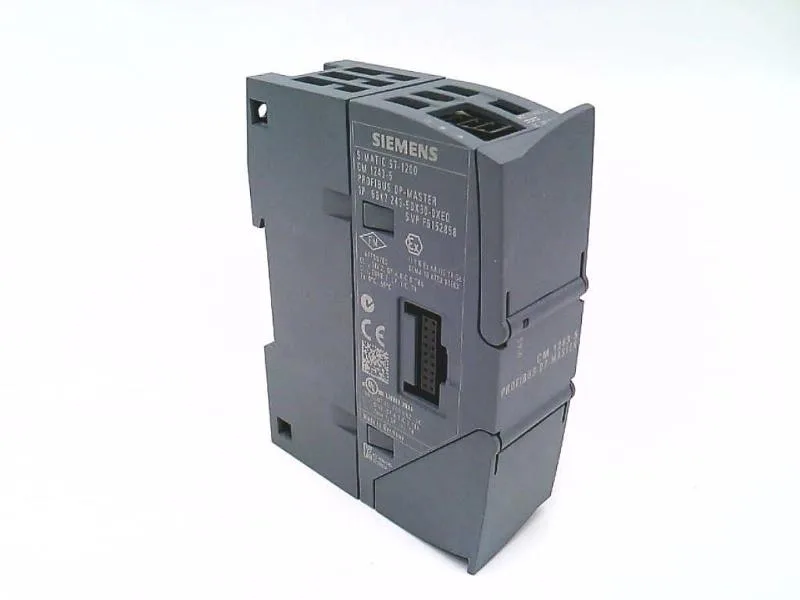

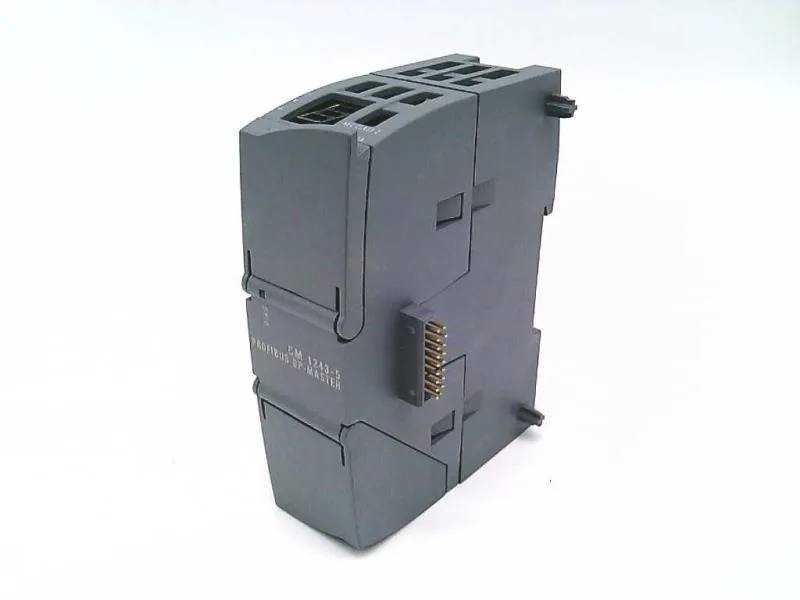

Siemens 6GK7243-5DX30-0XE0 CM 1243-5 PROFIBUS DP Master module for S7-1200, 24 V DC, 9-pin Sub-D, IP20.
| Parameter | Value |
|---|---|
| TCP/IP support | No |
| Parameter | Value |
|---|---|
| IP protection degree | IP20 |
| Storage temperature range | -40 ... +70 °C |
| Transport temperature range | -40 ... +70 °C |
| Parameter | Value |
|---|---|
| Width | 30 mm |
| Height | 100 mm |
| Depth | 75 mm |
Slot it onto the S7-1200 DIN rail, single width. Wire external 24V DC supply to the 3-pole terminal block. Connect PROFIBUS via the 9-pin Sub-D. Maximum 32 DP slaves. Max 8 S7 connections per module. Configure with STEP 7 Basic or Professional.
This module is a PROFIBUS DP master; it does not support DPV0 or DPV1 slave profiles — the DPV0 and DPV1 fields are marked No for that reason.
Requires an external 24 V DC supply (20% tolerance) via a 3-pole terminal block. Power consumption is 2.4 W.
Can operate up to 32 DP slaves on the bus.
