Integration details

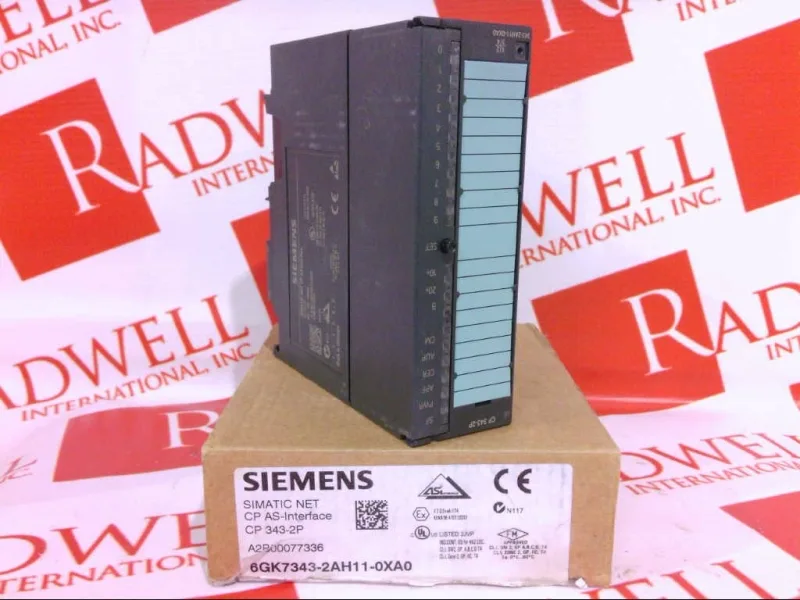

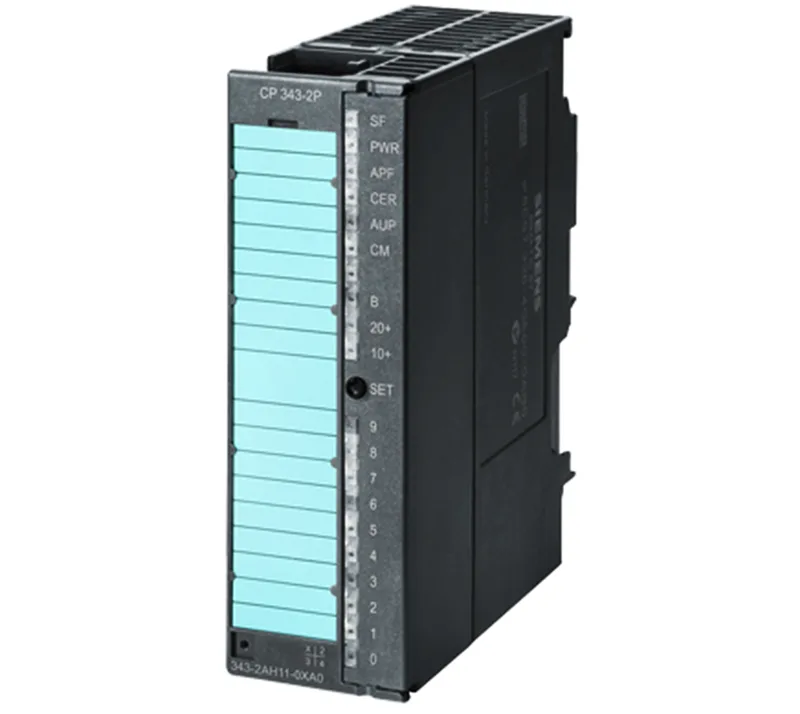

The 6GK7343-2AH11-0XA0 slots into a standard S7 mounting rail, 40mm wide by 125mm high by 120mm deep, IP20. Powered via the backplane bus up to 200mA; an auxiliary 30V supply at 100mA is available for the AS-i loop, with galvanic isolation. Access to digital I/O data runs through the process image or peripheral addresses; analog I/O requires data record transfer. Status monitoring via LEDs: RUN, APF, CER, AUP, CM, SF.
