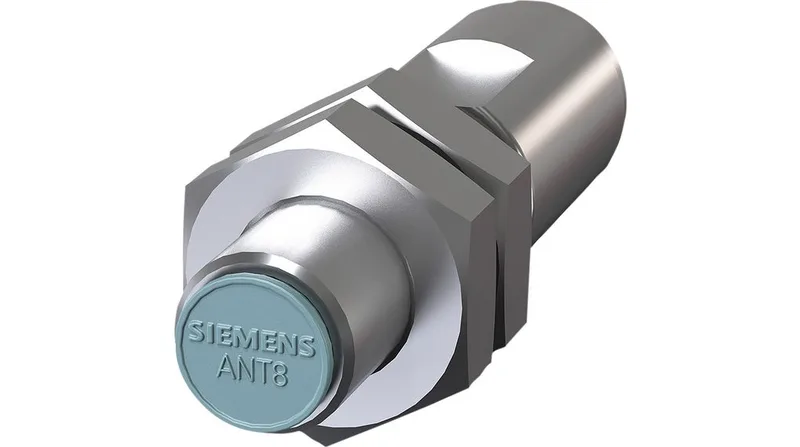

The Siemens 6GT2398-1CF10 is a SIMATIC RF200/RF300 ANT 8 RFID antenna tuned to 13.56 MHz, built for industrial read/write stations. The stainless steel V2A body with IP67 front protection means it withstands washdown and particulate ingress in food, beverage, or automotive assembly environments — the front face seals against jets, the M8 4-pin male connector keeps the cable interface dry. That covers cold storage warehouses and hot washdown zones without derating. Shock resistance per EN 60721-3-7 class 7M2 at 500 m/s² and vibrational acceleration of 200 m/s² — it holds alignment on robot end-effectors and high-vibration conveyor tracks. The antenna ships with a 3 m trailing cable, both ends pre-terminated (male M8, 4-pin), and includes the 6GT2391-0AH30 antenna cable as an accessory. Two stainless steel M8 x 1.0 nuts are included for fastening. Suitability for operation with the RF250R read/write head is explicitly stated — this is the intended pairing for a compact RFID point.
Siemens 6GT2398-1CF10 ANT 8 RFID Antenna, 13.56 MHz, IP67
MPN6GT2398-1CF10
Active
Siemens SIMATIC RF200/RF300 ANT 8 M8x38 mm RFID antenna, 13.56 MHz, IP67 front, stainless steel V2A, M8 4-pin male, 3 m trailing cable.
$354.00 – $370.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Compatible transponders / systems | RF250R |
| Parameter | Value |
|---|---|
| Mounting / fastening method | 2 stainless steel csrew nuts M8 x 1.0 (included) |
| Depth | 38 mm |
| Material | Stainless steel V2A |
| Color | Silver |
| Parameter | Value |
|---|---|
| Degree of protection (IP) | IP67, front |
| Operating temperature range | -25 ... +70 °C |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Shock acceleration | 500 m/s² |
| Vibration acceleration | 200 m/s² |
| Shock resistance standard | according to EN 60721-3-7 Class 7M2 |
| Parameter | Value |
|---|---|
| IECEx certified | No |
Product details
Frequently asked questions
What is the operating temperature range?
Rated for -25 to +70 °C during operation, with storage and transport tolerance from -40 to +85 °C.
What cable and connector does this antenna use?
The antenna has a 3 m trailing cable with a male M8 4-pin connector on both ends. The accessory 6GT2391-0AH30 antenna cable is included.
What protection class does the antenna have?
IP67 on the front face — sealed against dust ingress and temporary immersion. Suitable for washdown environments.
What read/write heads is this antenna compatible with?
It is explicitly stated as suitable for operation with the RF250R. It is part of the SIMATIC RF200/RF300 family.
MPN
6GT2398-1CF10
