Tag for high-temp, washdown environments

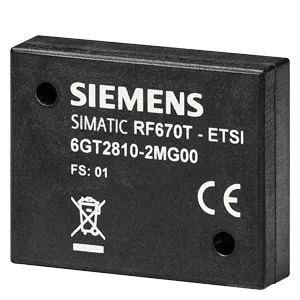

The 6GT2810-2MG00: The SIMATIC RF670T is a passive UHF RFID tag in the RF67xT family, built around the NXP UCODE 9XM IC. It operates in the 865 to 868 MHz ETSI band and complies with ISO 18000-63 and EPC Class 1 Gen 2. The 496-bit (62-byte) EPC ID and 752-bit (94-byte) user memory give you room for a serial number plus process data — enough to track a work-in-progress through a paint line or autoclave cycle. The tag is rated for -40 °C to +140 °C continuous and carries IP68/IPx9K sealing. That means it survives steam-jet cleaning and sustained heat — think food-processing washdown zones, tire curing, or engine block transport carriers. The 43 x 33 x 5.5 mm form factor is a rigid PPS body; it mounts with adhesive or mechanical fasteners, but the datasheet notes printing is not possible on the surface, and fixing directly to metal will detune the antenna — you need a spacer or a metal-mount tag variant for steel assets.
