Siemens 6GT2821-1AC10
MPN6GT2821-1AC10
Active

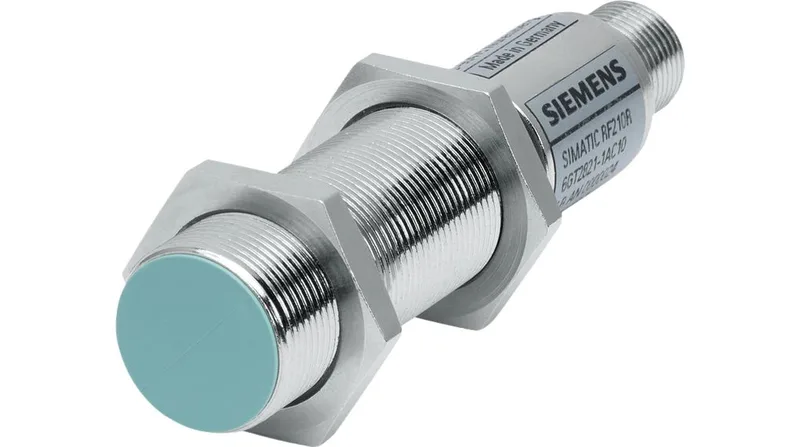

SIMATIC RF200 reader RF210R; RS422 interface (3964R); IP67, -25 to +70 °C; M18x 71mm; with integrated antenna.
$266.19Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
RF / Air interface
| Parameter | Value |
|---|---|
| Operating frequency (rated) | 13.56 MHz |
| Supported RF protocols | ISO 15693, ISO 18000-3 |
| Compatible transponders / systems | ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules |
| Read/write range, max. | 20 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| Air-interface data rate, max. | 26.5 kbit/s |
| Multitag capable | No |
Performance
| Parameter | Value |
|---|---|
| Read time per byte (typ.) | 0.6 ms |
| Write time per byte (typ.) | 0.6 ms |
| MTBF | 505 a |
Communication / Electrical
| Parameter | Value |
|---|---|
| Communication interfaces | RS422 |
| Electrical connector type | M12, 8-pin |
| Voltage range (DC) | 20.4 ... 28.8 V |
| Rated value (DC) | 24 V |
| Current at 24 V (typ.) | 0.05 A |
| Status indicators (LEDs) | 3-color LED |
Mechanical
| Parameter | Value |
|---|---|
| Mounting / fastening method | 2 nuts M18 x 1 (included in scope of supply) |
| Height | 83 mm |
| Material | Brass, nickel-plated / PBT |
| Color | silver/pastel turquoise |
Environmental
| Parameter | Value |
|---|---|
| Degree of protection (IP) | IP67 |
| Operating temperature range | -20 ... +70 °C |
| Storage temperature range | -25 ... +80 °C |
| Transport temperature range | -25 ... +80 °C |
| Shock acceleration | 500 m/s² |
| Vibration acceleration | 200 m/s² |
| Shock resistance standard | EN 60721-3-7 Class 7 M2 |
Approvals
| Parameter | Value |
|---|---|
| IECEx certified | No |
MPN
6GT2821-1AC10
