Siemens 6GT2821-2BC32 RF220R RFID Reader, IO-Link V1.1
Siemens SIMATIC RF200 RF220R, RFID reader, IO-Link V1.1 interface, IP67, 13.56 MHz, 35 mm range, M30 x 83 mm, 6GT2821-2BC32.
Specifications
| Parameter | Value |
|---|---|
| Operating frequency (rated) | 13.56 MHz |
| Supported RF protocols | ISO 15693, ISO 18000-3 |
| Compatible transponders / systems | ISO 15693 transponder (MDS Dxxx), for connecting to IO-Link Master V1.1 |
| Read/write range, max. | 35 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| Air-interface data rate, max. | 26.5 kbit/s |
| Multitag capable | No |
| Parameter | Value |
|---|---|
| Read time per byte (typ.) | 2.4 ms |
| Write time per byte (typ.) | 3.3 ms |
| MTBF | 501 a |
| Parameter | Value |
|---|---|
| Communication interfaces | IO-Link V1.1 |
| Electrical connector type | M12, 4-pin |
| Voltage range (DC) | 20.4 ... 28.8 V |
| Rated value (DC) | 24 V |
| Current at 24 V (typ.) | 0.05 A |
| Status indicators (LEDs) | 3-color LED |
| Parameter | Value |
|---|---|
| Mounting / fastening method | 2 nuts M30 x 1.5 (included in scope of supply) |
| Height | 83 mm |
| Material | Brass, nickel-plated / PBT |
| Color | silver/pastel turquoise |
| Parameter | Value |
|---|---|
| Degree of protection (IP) | IP67; IP67 |
| Operating temperature range | -20 ... +70 °C |
| Storage temperature range | -25 ... +80 °C |
| Transport temperature range | -25 ... +80 °C |
| Shock acceleration | 500 m/s² |
| Vibration acceleration | 200 m/s² |
| Shock resistance standard | EN 60721-3-7 Class 7 M2 |
| Parameter | Value |
|---|---|
| IECEx certified | No |
Product details
IO-Link V1.1 RFID reader for the line
The Siemens 6GT2821-2BC32 is a SIMATIC RF220R RFID reader, part of the RF200 family, designed for reading and writing to ISO 15693 transponders (MDS Dxxx) at 13.56 MHz. It connects to an IO-Link V1.1 master over a standard M12, 4-pin connector, with a maximum cable length of 20 m between the master and the device. This is the interface choice when you need a simple, point-to-point link without a dedicated fieldbus node at the reader — the IO-Link master handles the bus mapping.
Read range and physical fit

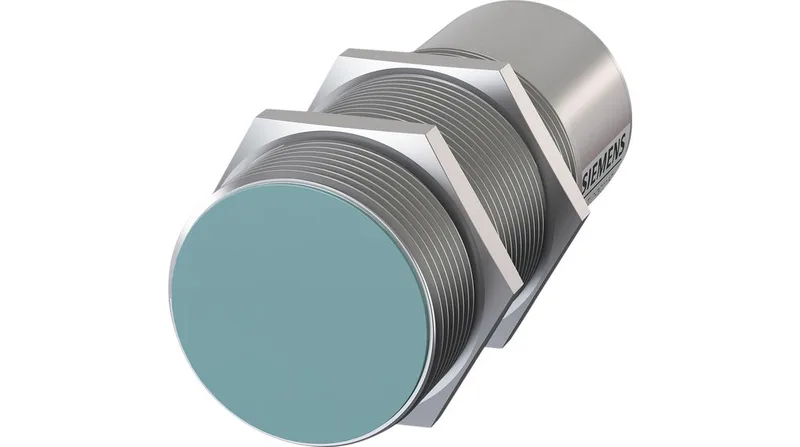

Maximum read range is 35 mm, but this is dependent on the transponder type — check the Siemens support entry for the specific MDS tag you are using. The M30 x 1.5 threaded barrel, 83 mm long, mounts with two included nuts. The brass, nickel-plated / PBT housing is IP67-rated, meaning the reader survives washdown environments and direct spray. A 3-color LED on the housing gives local status without needing to open the panel.
Power and data timing
The radio transfer rate is 26.5 kbit/s maximum; typical read access per byte is 2.4 ms, write access 3.3 ms. The 32-byte IO process data fits within a standard IO-Link cycle. The reader is not multi-tag capable — it reads one transponder at a time, which is the expected behavior for a single-antenna M30 form factor.
Shock resistance per EN 60721-3-7 Class 7M2 at 500 m/s², vibration at 200 m/s². The MTBF is listed at 501 a. This is a current-production Siemens catalog item.
