Siemens 6GT2821-5BC32 RF250R RFID Reader, IO-Link, IP65

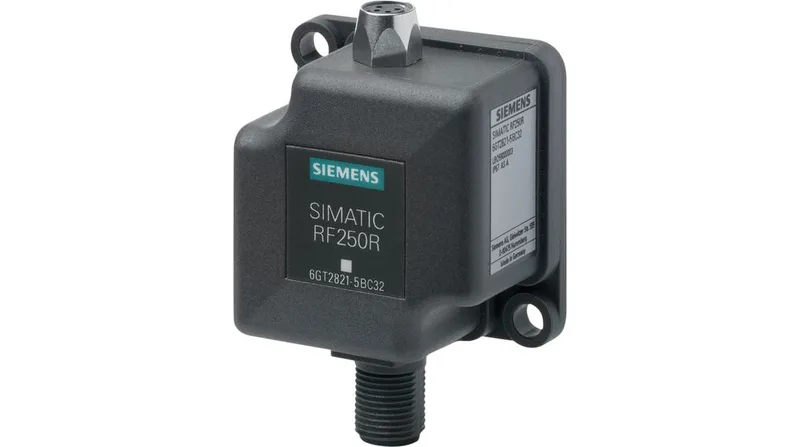

Siemens SIMATIC RF250R RFID reader, 6GT2821-5BC32, IO-Link V1.1, 13.56 MHz, IP65, 50 x 50 x 30 mm, anthracite.
Specifications
| Parameter | Value |
|---|---|
| Operating frequency (rated) | 13.56 MHz |
| Supported RF protocols | ISO 15693, ISO 18000-3 |
| Compatible transponders / systems | ISO 15693 transponder (MDS Dxxx), for connecting to IO-Link Master V1.1 |
| Read/write range, max. | 60 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| Air-interface data rate, max. | 26.5 kbit/s |
| Multitag capable | No |
| Parameter | Value |
|---|---|
| Read time per byte (typ.) | 2.4 ms |
| Write time per byte (typ.) | 3.3 ms |
| MTBF | 430 y |
| Parameter | Value |
|---|---|
| Communication interfaces | IO-Link V1.1 |
| Voltage range (DC) | 20.4 ... 28.8 V |
| Rated value (DC) | 24 V |
| Current at 24 V (typ.) | 0.05 A |
| Status indicators (LEDs) | 3-color LED |
| Parameter | Value |
|---|---|
| Mounting / fastening method | 2 x M5 screws |
| Width | 50 mm |
| Height | 30 mm |
| Depth | 50 mm |
| Material | PA6.6 |
| Color | anthracite |
| Parameter | Value |
|---|---|
| Degree of protection (IP) | IP65 |
| Operating temperature range | -20 ... +70 °C |
| Storage temperature range | -25 ... +80 °C |
| Transport temperature range | -25 ... +80 °C |
| Shock acceleration | 500 m/s² |
| Vibration acceleration | 200 m/s² |
| Shock resistance standard | EN 60721-3-7 Class 7 M2 |
| Parameter | Value |
|---|---|
| IECEx certified | No |
Product details
Frequently asked questions
What antennas are compatible with the Siemens 6GT2821-5BC32?
Compatible antennas include ANT 1, 3, 3NO, 8, 12, 18, and 30. The reader connects to one external antenna via an M8 4-pin connector.
Is the RF250R IO-Link compatible?
Yes, the 6GT2821-5BC32 communicates via IO-Link V1.1 and connects to an IO-Link master over a maximum cable length of 20 m.
What is the MTBF of Siemens 6GT2821-5BC32?
The listed MTBF is 430 years.
Reader core and IO-Link interface
The Siemens 6GT2821-5BC32 is a SIMATIC RF250R RFID reader operating at 13.56 MHz, communicating via IO-Link V1.1. It reads ISO 15693 and ISO 18000-3 transponders (MDS Dxxx series) and connects to an IO-Link master over a maximum cable length of 20 m between master and device. The reader supports one external antenna via an M8 4-pin connector; the IO-Link interface uses an M12 4-pin connector.
Read performance and antenna pairing
Typical read access per byte is 2.4 ms; write access takes 3.3 ms per byte. Maximum radio transfer rate is 26.5 kbit/s. The maximum read range is 60 mm, but this depends on the transponder type — Siemens application support document 67384964 covers the range per transponder. Compatible antennas include ANT 1, 3, 3NO, 8, 12, 18, and 30. The reader is not multitag-capable — it handles one transponder at a time.
Housing is PA6.6, anthracite, 50 x 50 x 30 mm, fastened with two M5 screws. IP67-rated when the sealing washer is seated — the connector O-ring is the wet-end barrier. Shock resistance per EN 60721-3-7 Class 7M2 at 500 m/s²; vibration resistance at 200 m/s². Silicon-free construction is confirmed.
MTBF is listed at 430 years. The reader carries a 3-color LED display for status indication.
