Siemens 6GT2891-0DH50

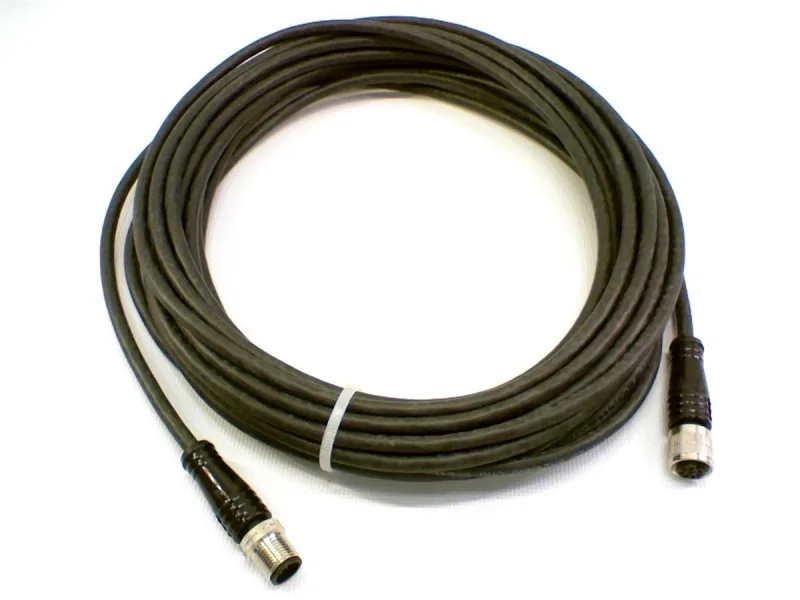

Siemens 6GT2891-0DH50 SIMATIC RF600 DI/DO Cable, 5 m, M12

MPN 6GT2891-0DH50

Siemens SIMATIC RF600 DI/DO cable connector for RF640R, M12 8-pin male straight to open end, 5 m, shielded PUR, IP67, 300 V.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6GT2891-0DH50 specifications
ParameterValue
Fire behaviorflame resistant according to UL FT-2

Product details

The Siemens 6GT2891-0DH50 is a factory-terminated DI/DO cable for wiring sensors and actuators to the SIMATIC RF640R reader at the customer's end — essentially the field-side connection between the reader head and the I/O it monitors or controls. One end carries an M12 male 8-pin straight connector; the other is open, ready for field wiring into a junction box or control cabinet. The 5 m length covers most reader-to-panel distances without a splice.

Rated for 300 V maximum — that's the insulation rating of the 8-core 0.25 mm² conductors under the PUR sheath, not a working voltage for power circuits. It handles the 24 VDC DI/DO signals the RF640R expects, with headroom for 48 VDC if your application uses it. The cable is shielded with a braided shield of tin-plated copper wires, which keeps RF noise from the reader's radio section out of the I/O lines — important when the cable runs parallel to the antenna feed or in a panel with drives. Rated for 2 million bending cycles at a minimum bend radius of 59 mm (continuous bending) and 47.2 mm for a single bend. That puts it in the continuous-flex class for cable tracks on a moving gantry or a reader mounted on a robot arm — not just a static install-and-forget cable. Flame resistant according to UL FT-2, so it passes the vertical-flame test for cable trays inside a plenum or cabinet. The PUR jacket is conditionally UV resistant per DIN EN ISO 4892-2-A, meaning it can handle indirect sunlight in a washdown area but not continuous direct exposure outdoors.

This is a spare part for the SIMATIC RF600 system, not a commodity cable. Expect to quote it to order — it is not the kind of part a distributor stocks in depth. For a line-down situation, confirm lead time before committing the PO.

MPN
6GT2891-0DH50
