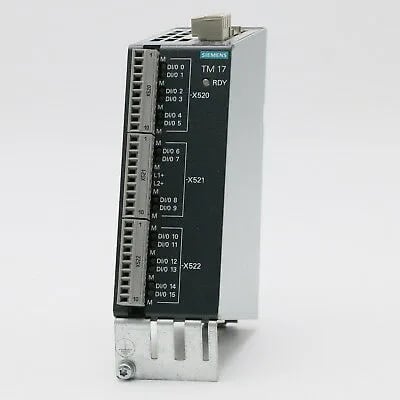

The Siemens 6SL3055-0AA00-3HA0 is a SINAMICS Terminal Module TM17 High Feature — a 16-channel digital I/O expansion block for drive-based control. It runs on 24 V DC and each channel handles 0.5 A, so it can sink small solenoids, indicator lamps, or signal-level loads directly, but anything bigger needs an interposing relay. The module ships without a DRIVE-CLiQ cable; you'll need one to link it to the drive or CU.
What the 16 DI/O rating means for fit
Sixteen digital I/O points at 24 V DC and 0.5 A per channel means this module handles mixed input and output on the same block — no separate input card needed for simple limit-switch or pushbutton feedback. The 0.5 A output rating is enough for a small relay coil or a pilot light, but not for a contactor or motor starter directly. If your application needs more than 0.5 A per channel, you'll want an interposing relay bank between the module and the load.
Deployment context
This terminal module snaps onto a DIN rail inside a control panel and communicates over DRIVE-CLiQ to a SINAMICS drive or Control Unit. It's a field-side I/O block — mount it near the machine's sensors and actuators to keep wiring runs short. The 24 V DC supply is standard for industrial panels, so it integrates with existing power supplies without a separate voltage rail.
