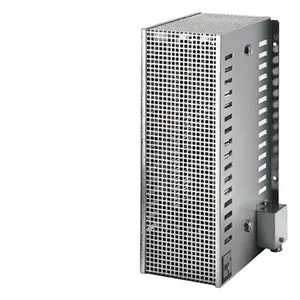

The Siemens 6SL3100-1BE22-5AA0 is a SINAMICS Pulsed Resistor Plus — a spare part brake resistor rated for 600 V DC input with a resistance of 15.6 Ohm. That 15.6 Ohm value sets the braking torque curve for the DC link; a lower resistance would pull more current and a higher one would limit braking force, so this is the specific value the drive expects for the power stage it mates with.
Siemens 6SL3100-1BE22-5AA0 SINAMICS Pulsed Resistor, 600 V D
MPN6SL3100-1BE22-5AA0
Siemens SINAMICS Pulsed Resistor Plus, 6SL3100-1BE22-5AA0, 600 V DC, 15.6 Ohm, 6.80 kgs, Brake Resistors category.
$2,575.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 6.80 kgs |
Product details
Frequently asked questions
What is the resistance and voltage rating of this SINAMICS pulsed resistor?
It's rated for 600 V DC input with a resistance of 15.6 Ohm. That resistance value is the critical parameter for matching the braking torque requirement of the drive system.
Where can I buy 6SL3100-1BE22-5AA0?
This part is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.
MPN
6SL3100-1BE22-5AA0
