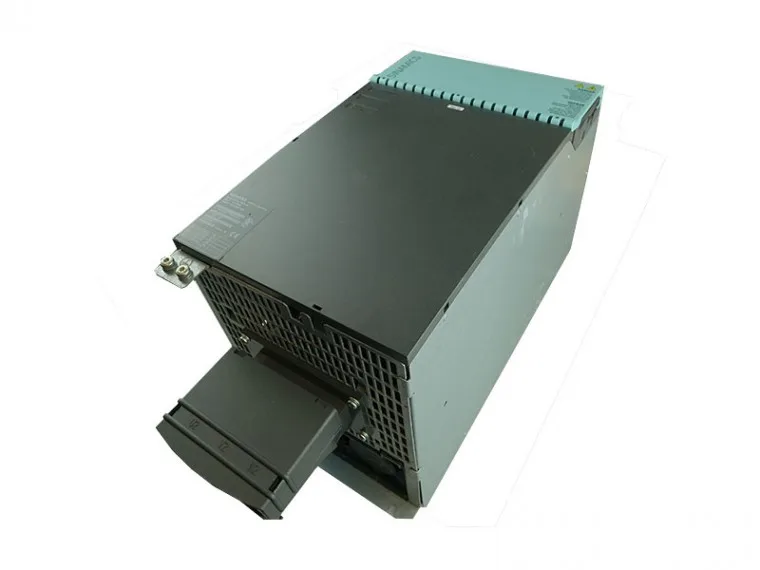

The Siemens 6SL3120-1TE32-0AA0 is a SINAMICS Single Motor Module designated as a spare part. It takes a 600 V DC link input and delivers 400 V three-phase AC output rated at 200 A, with internal air cooling and the DRIVE-CLiQ cable included. That 200 A rating is the continuous output current — the figure that sizes the motor cable, the upstream DC bus fuse, and the thermal capacity of the cabinet's forced-air path. If your line's motor FLA plus service factor comes near 200 A, this module handles it; if the motor draws less, the module still runs at its rated switching frequency without derating down to a certain minimum load, so it's not oversized for a smaller motor as long as the DC bus voltage matches.
Integration notes
This is a SINAMICS S120 Single Motor Module in the book-size format, designed to mount on a heatsink or cabinet backplate with internal air cooling. The 600 V DC input comes from the S120 Smart Line Module or Active Line Module's DC bus. The DRIVE-CLiQ cable connects to the Control Unit (CU320-2 or similar) for real-time communication and parameter download. The 200 A output stage drives a single motor — typically a servo or induction motor on a feed axis, spindle, or conveyor section. For the commissioning engineer: after mounting and wiring the DC bus and motor cable, the CU will auto-detect this module via DRIVE-CLiQ and load the appropriate topology; you'll then set the motor data (stator resistance, inductance, encoder type) in STARTER or Startdrive. The internal air cooling means the module's heatsink fan must have clearance for airflow — don't stack modules tighter than the Siemens minimum spacing in the cabinet layout.
