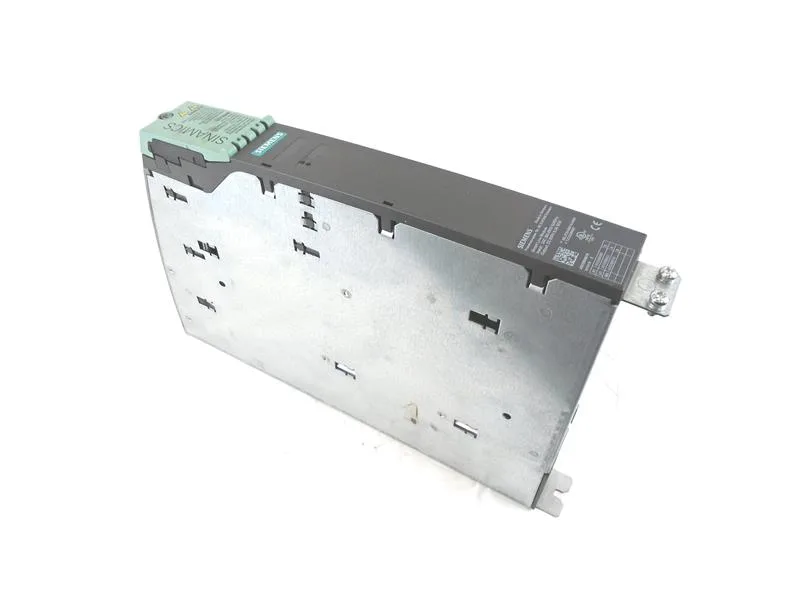

The Siemens 6SL3130-6AE15-0AB0 is a SINAMICS S120 Smart Line Module in the booksize form factor, marked as a spare part. It takes a 380-480 V three-phase AC input at 50/60 Hz and delivers a regulated 600 V DC output at 8.3 A, rated for 5 kW. Internal air cooling handles the thermal load, and the module ships with the Control Voltage Adapter modules pre-installed — no separate ordering step for that adapter.
The 600 V DC output at 8.3 A and 5 kW defines the DC-link bus it can supply. This is a Smart Line Module, meaning it provides a regulated DC bus voltage and regenerative braking capability (unregulated vs. regulated is the key difference from a Basic Line Module). The booksize width saves panel space in multi-axis drives — it slots into the SINAMICS S120 booksize frame alongside Motor Modules and Control Units. Input at 380-480 V three-phase covers the standard European and North American industrial voltages; the 50/60 Hz rating confirms it works on either line frequency without derating.
Integration notes
Internal air cooling means it draws ambient cabinet air across the heatsink — no external coolant loop, but clearance above and below for airflow is required. The Control Voltage Adapter modules are included, so the 24 V DC control supply wiring connects directly to the module without an external adapter board. Verify the DC bus capacitance matches the total Motor Module load in the drive group — the 5 kW rating is the continuous power it can supply to the DC link.
