Siemens 6SL3130-7TE23-6AB0

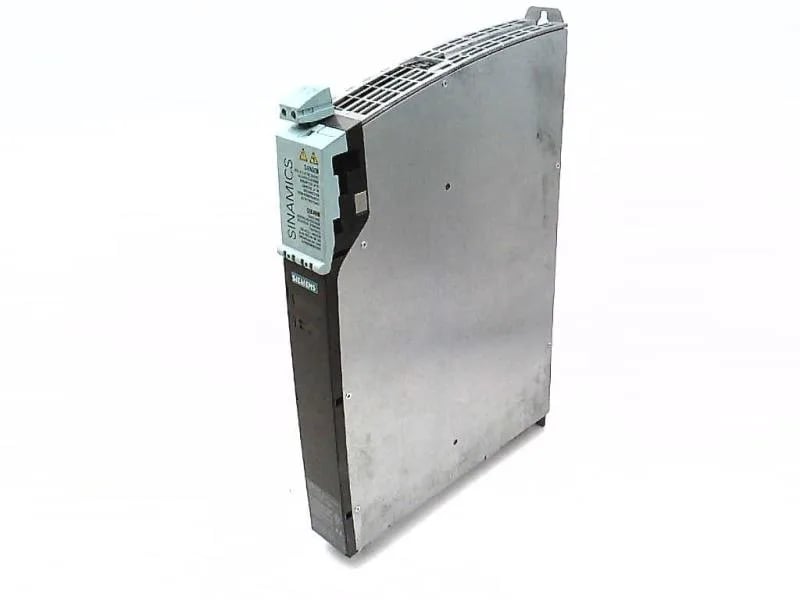

Siemens 6SL3130-7TE23-6AB0 SINAMICS S120 Active Line Module,

MPN 6SL3130-7TE23-6AB0

Siemens SINAMICS S120 Active Line Module, spare part 6SL3130-7TE23-6AB0, 380-480 V 3 AC input, 600 V DC 60 A output, 36 kW, internal air cooling, includes Control Voltage Adapter and DRIVE-CLiQ cable modules.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Product details

The Siemens 6SL3130-7TE23-6AB0 is a SINAMICS S120 Active Line Module designated as a spare part. It takes a 380-480 V 3 AC, 50/60 Hz input and delivers a regulated 600 V DC bus at 60 A, rated for 36 kW. Internal air cooling handles the thermal load, and the module ships with the Control Voltage Adapter and DRIVE-CLiQ cable modules included — meaning a replacement swap doesn't require sourcing those separately.

The 60 A DC output at 600 V DC is the bus rating that feeds downstream Motor Modules. That 36 kW figure is the continuous power the line module can supply to the DC link — sized for a multi-axis group where the sum of motor powers stays under that ceiling. Internal air cooling means it pulls cabinet air through its own heatsink; verify the enclosure's thermal budget can handle the rejected heat, especially in a sealed or high-ambient panel.

MPN
6SL3130-7TE23-6AB0
