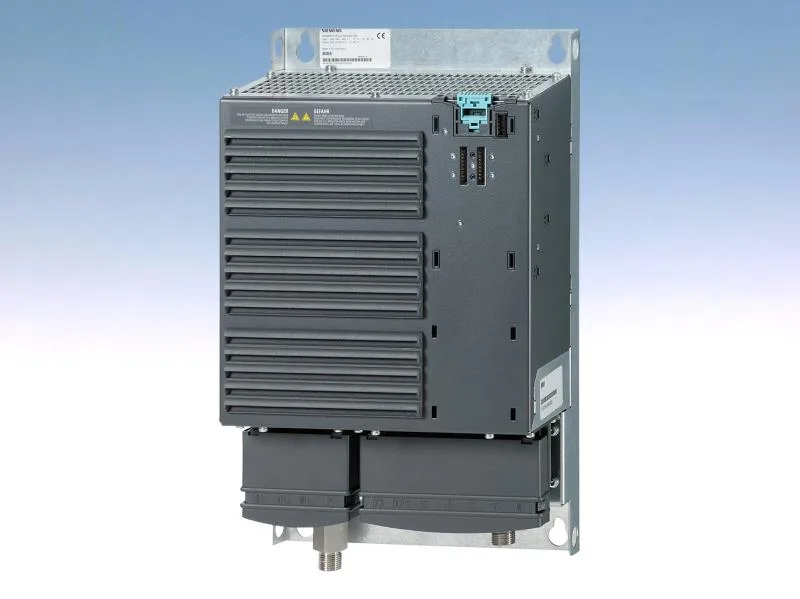

The Siemens 6SL3210-1KE11-8AP0 is a SINAMICS G120C variable-frequency drive rated for 0.55 kW output with a 150% overload capability for 3 seconds — enough headroom to start a small pump or fan under load without oversizing the drive. It runs on three-phase 380–480 VAC (+10%/-20%) at 47–63 Hz, with an integrated Class A EMC filter that keeps conducted emissions within EN 61800-3 limits for industrial environments.
The I/O interface includes 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output — enough for basic speed setpoint, start/stop, and fault feedback without an extra I/O module. Safe Torque Off (STO) is integrated, so you can drop a safety relay or PLC safety output straight onto the drive without a separate safety module. Fieldbus is PROFIBUS DP onboard; no option card needed for that protocol.
Lifecycle stage is marked as mature.
