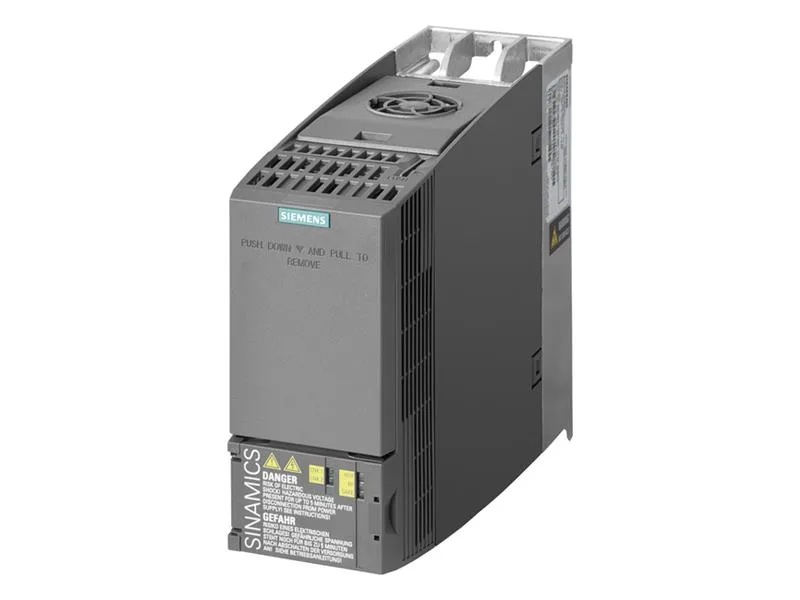

Siemens 6SL3210-1KE11-8UP0 — AC Drives (VFD)

Siemens 6SL3210-1KE11-8UP0 SINAMICS G120C, 0.55 kW, 150% ove

MPN6SL3210-1KE11-8UP0

Siemens SINAMICS G120C, 0.55 kW, 150% overload for 3 sec, 3AC 380-480 V, unfiltered, PROFIBUS-DP, IP20, size FSA.

$284.12Ref. price · indicative, final on quote
Siemens 6SL3210-1KE11-8UP0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6SL3210-1KE11-8UP0 — Mechanical
ParameterValue
Weight1.63 kgs

Product details

The Siemens 6SL3210-1KE11-8UP0 is a SINAMICS G120C compact drive rated for 0.55 kW output power with a 150% overload capability for 3 seconds, sized for a small induction motor on a 3AC 380-480 V supply. Unfiltered variant — expect to add an external line reactor or EMC filter if the installation must meet conducted emission limits. Integrated PROFIBUS-DP fieldbus, so it drops into a Siemens S7-300/400 or third-party PROFIBUS master network without an option card.

I/O and safety

Onboard I/O: 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output. Safe Torque Off (STO) is integrated — no separate safety module needed for a Category 3 / PL d stop function. The I/O map is fixed; no expansion slot for additional I/O on this FSA frame size.

Frequently asked questions

Where can I buy 6SL3210-1KE11-8UP0?

This drive is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the 150% overload rating for 3 seconds?

The drive can deliver 150% of its rated output current for 3 seconds, useful for starting high-inertia loads or momentary torque demands without tripping.

Does 6SL3210-1KE11-8UP0 include Safe Torque Off?

Yes, Safe Torque Off (STO) is integrated into the drive, eliminating the need for a separate safety relay for a Category 3 / PL d stop function.
