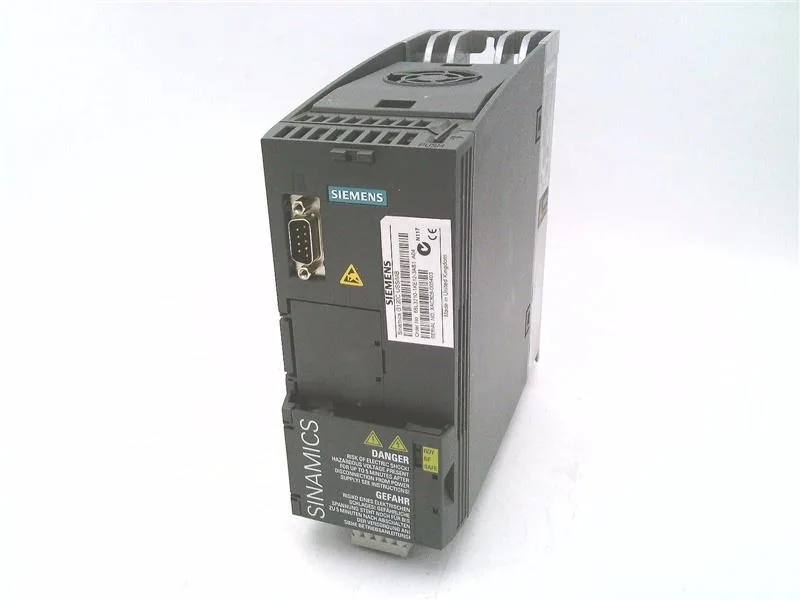

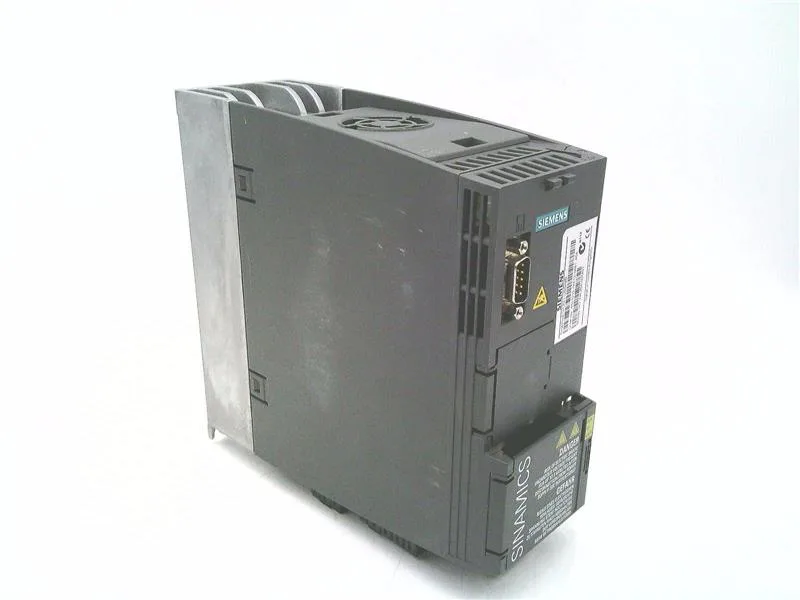

The Siemens 6SL3210-1KE12-3AB1 is a SINAMICS G120C compact drive rated for 0.75 kW with a 150% overload capability for 3 seconds, operating on a 380-480 V 3-phase supply at 47-63 Hz. It integrates a Class A EMC filter, Safe-Torque-Off (STO), and USS/MODBUS RTU fieldbus on board, making it a self-contained unit for conveyor, pump, or fan applications where space on the DIN rail is tight — the FSA frame measures 196 x 73 x 203 mm (HxWxD).
The 0.75 kW rating at 150% overload for 3 seconds means this drive can handle short-duration torque spikes — useful for starting a loaded conveyor or accelerating a fan — without needing to oversize to the next frame. The 380-480 V 3AC input covers standard European and North American industrial mains; the +10/-20% tolerance handles weak grids or long cable runs. IP20 / UL Open Type means it mounts inside a clean, dry enclosure — not on the machine frame in a washdown zone. The integrated Safe-Torque-Off (STO) eliminates the need for a separate safety contactor on the motor branch, simplifying the safety circuit to a single drive-based SIL 3 / PL e stop path. The onboard USS/MODBUS RTU fieldbus means no option card is required for basic PLC communication over RS-485; for PROFINET or EtherNet/IP, the G120C accepts a separate communication module in the slot. The I/O complement — 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output — covers most standalone applications without an expansion module. The external 24 V supply requirement means the control logic stays alive even when the DC bus is discharged, keeping the fieldbus link active.
For BOM freeze or long-term planning, the SINAMICS G120C family has a stable hardware revision history; the integrated STO and fieldbus mean no separate safety relay or communication module to obsolesce independently.
The IP20 / UL Open Type rating requires the drive to be installed inside an enclosure rated for the environment — typically a NEMA 1 or 12 cabinet for factory-floor use. The integrated Class A EMC filter is suitable for industrial mains; for residential or light-commercial installations, an external Class B filter may be needed.
