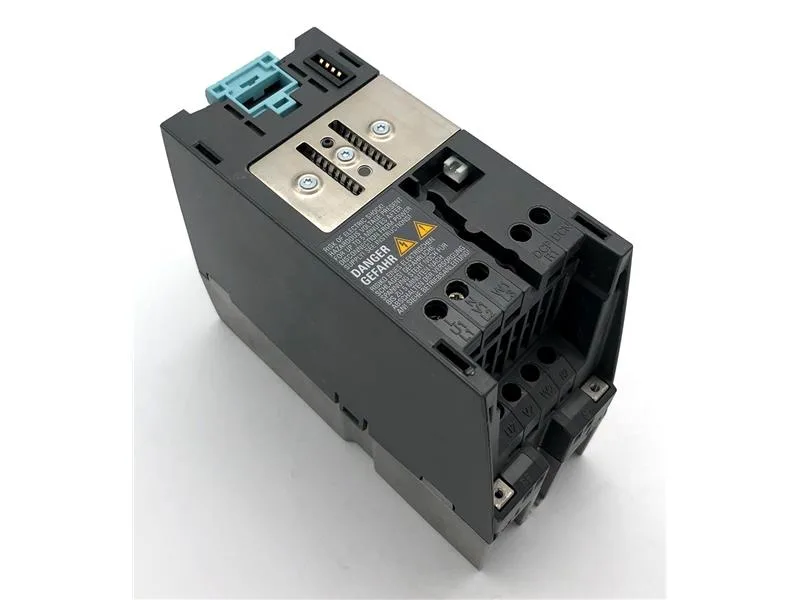

The Siemens 6SL3210-1KE13-2AB0 is a SINAMICS G120C compact drive rated for 1.1 kW output power with 150% overload capability for 3 seconds.
The 150% overload for 3 seconds is the key sizing spec — it handles short-duration high-torque demands like conveyor start-up or crusher breakaway without tripping. The integrated Class A EMC filter means the drive meets EN 61800-3 Category C2 conducted emission limits for industrial environments; no external filter needed for most installations. The I/O complement — 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output — covers basic speed control and feedback for pumps, fans, and simple conveyors. Safe Torque Off (STO) is integrated per EN 61800-5-2, eliminating the need for a separate safety relay on the drive output. Integrated USS and Modbus RTU fieldbus on the standard unit means it talks directly to a Siemens S7-1200/1500 or any Modbus master without an option card. The IP20 / UL Open Type enclosure is panel-mount only — install it in a clean, dry cabinet with adequate ventilation for the FSA frame size (196 x 73 x 203 mm).
