Siemens 6SL3210-1KE13-2AB1 — AC Drives (VFD)

SINAMICS G120C 6SL3210-1KE13-2AB1 Drive, 1.1 kW, 380-480 VAC

MPN6SL3210-1KE13-2AB1

Siemens SINAMICS G120C, 6SL3210-1KE13-2AB1, 1.1 kW rated power, 150% overload for 3 seconds, 380-480 VAC 3-phase, IP20, USS/MODBUS RTU, Safe-Torque-Off.

$1,193.33Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6SL3210-1KE13-2AB1 — Mechanical
ParameterValue
Weight1.03 kgs

Product details

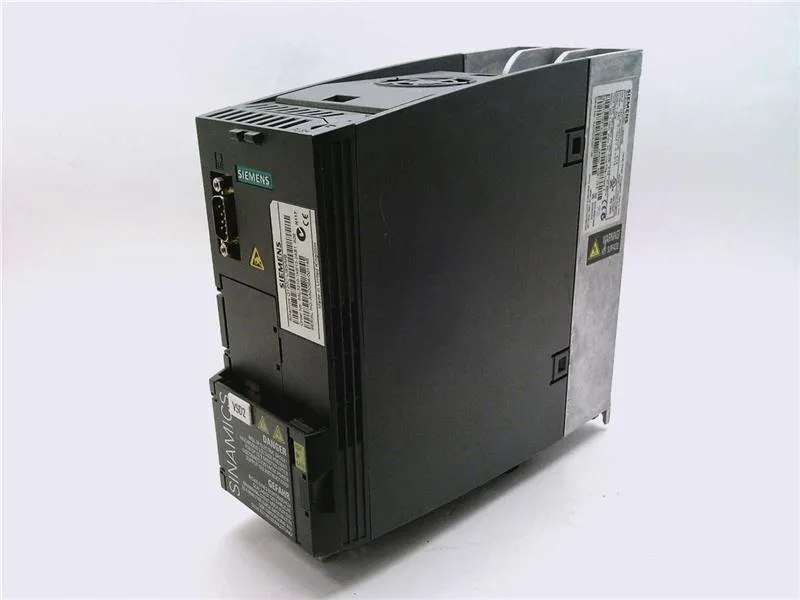

The Siemens SINAMICS G120C 6SL3210-1KE13-2AB1 is a compact drive rated for 1.1 kW continuous power on 380-480 VAC three-phase, with a 150% overload capability for 3 seconds — enough to handle a tough breakaway load on a conveyor or pump without oversizing the drive. It ships with an integrated Class A EMC filter, so you can skip the external box on most industrial lines, and the Safe-Torque-Off (STO) is built in — no extra safety relay card needed for that function. The I/O complement — 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output — covers a basic speed/start-stop setup, and the onboard USS/MODBUS RTU fieldbus means you can talk to a PLC without a separate comms module.

The FSA frame size — 196 x 73 x 203 mm (HxWxD) — fits a standard 200 mm deep enclosure, and the IP20 / UL Open Type rating means it's fine in a clean indoor panel but not for washdown or outdoor duty. It needs an external 24 V supply for the control electronics; that's typical for this class, but worth flagging if your panel only carries 120 VAC control power.

Frequently asked questions

Where can I buy the 6SL3210-1KE13-2AB1 and get a price?

This drive is sourced to order against an RFQ through our independent distribution network. Submit an RFQ for current pricing and availability — confirmed at quote time.

What is the power rating and overload capability of this drive?

It's rated for 1.1 kW continuous power on 380-480 VAC three-phase, with a 150% overload for 3 seconds — enough for breakaway torque on a conveyor or pump.

Does the 6SL3210-1KE13-2AB1 have built-in safety and fieldbus?

Yes, Safe-Torque-Off (STO) is integrated, and the onboard fieldbus supports USS and MODBUS RTU — no extra modules needed for basic safety or PLC communication.
