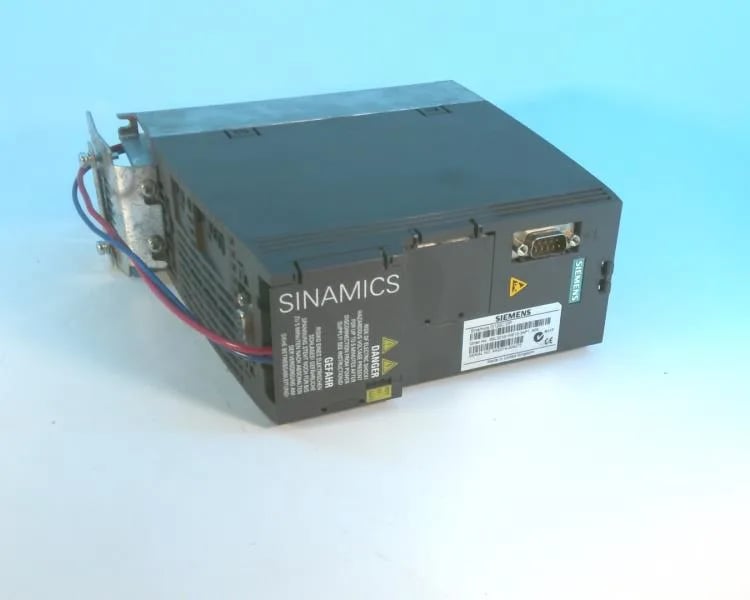

The Siemens 6SL3210-1KE13-2AP0 is a SINAMICS G120C drive rated at 1.1 kW with 150% overload capability for 3 seconds, operating on 3AC 380-480 V +10/-20%, 47-63 Hz. It includes an integrated Class A EMC filter, a PROFIBUS-DP fieldbus interface, and Safe Torque Off (STO) as standard. The I/O complement is 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output. Enclosure is IP20 / UL Open Type, size FSA (196 x 73 x 203 mm HxWxD).
Integration Notes
The FSA frame measures 196 x 73 x 203 mm — a compact footprint that fits a standard 200 mm deep enclosure. Mounting is via the integral DIN-rail clip or screw-mount lugs; the IP20 rating means it belongs inside a panel, not on the machine frame. The PROFIBUS-DP interface uses a standard 9-pin D-sub; set the station address via the DIP switches on the front cover before commissioning.
Overload and Duty
The 150% overload for 3 seconds is the high-overload curve — sized for a 1.1 kW motor, it can handle short-duration peaks like a conveyor start or a pump breakaway torque without tripping. For continuous duty at rated current, the drive runs without derating up to 40 °C ambient. The integrated Class A filter meets EN 55011 for conducted emissions in a standard industrial environment; no external filter is needed for most installations.
