Siemens 6SL3210-1KE14-3AF1

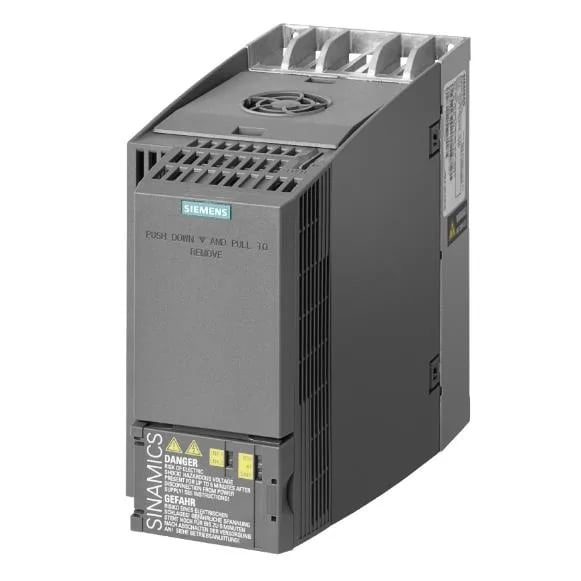

Siemens 6SL3210-1KE14-3AF1 SINAMICS G120C Drive, 1.5 kW, PRO

MPN 6SL3210-1KE14-3AF1

Siemens SINAMICS G120C drive, 6SL3210-1KE14-3AF1, 1.5 kW rated power, 150% overload for 3 s, 380-480 V 3AC, IP20/UL Open Type, PROFINET PN, Safe Torque Off, FSA size.

$1,013.84 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6SL3210-1KE14-3AF1 specifications
ParameterValue
Weight1.88 kgs

Product details

The Siemens 6SL3210-1KE14-3AF1 is a SINAMICS G120C compact drive rated for 1.5 kW output power with a 150% overload capability for 3 seconds — enough to get a pump or conveyor motor past a sticky start or a momentary load spike without tripping. The drive includes six digital inputs, two digital outputs, one analog input, and one analog output, plus Safe Torque Off (STO) built in — no separate safety module required for that basic stop function.

The 150% overload for 3 seconds is the number that matters for motor starting. A standard 1.5 kW induction motor draws around 3.2 A at 400 V, but inrush can hit 6-7 times that for a few cycles. The G120C's overload curve is designed to ride through that without nuisance tripping. If your load is a centrifugal pump or a fan with quadratic torque, this drive is oversized for the steady state but correctly sized for the start. For a constant-torque load like a conveyor, you'd want to check the duty cycle — the 150% for 3 s is a short burst, not a continuous rating.

MPN
6SL3210-1KE14-3AF1
