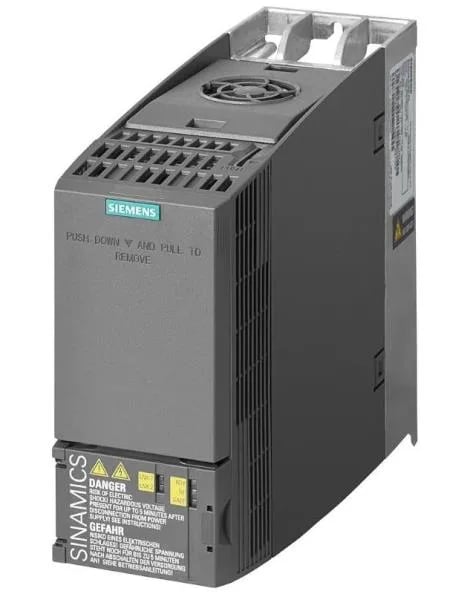

The Siemens 6SL3210-1KE14-3UB1 is a SINAMICS G120C compact drive rated for 1.5 kW output power with a 150% overload capability for 3 seconds — enough headroom to handle short-duration load spikes on a conveyor or pump start without oversizing the frame. It runs on a 380-480 V 3-phase supply at 47-63 Hz, unfiltered, so it's suited for direct connection to standard European or North American industrial mains without an external line filter for basic installations. The I/O complement — 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output — covers typical speed/start-stop control and feedback for a single motor, with Safe Torque-Off integrated for safety circuits and USS/MODBUS RTU on the fieldbus port for PLC communication.
Mounting and integration
IP20 / UL Open Type means it's designed for enclosure mounting — not washdown or outdoor — so plan for a clean, dry cabinet with clearance for airflow around the FSA frame (196 x 73 x 203 mm HxWxD). External 24 V supply required for the control logic; the drive does not generate its own auxiliary voltage, so factor in a 24 VDC power supply in the panel BOM.
