Siemens SINAMICS G120C, 2.2 kW, 380-480 VAC, PROFIBUS DP, Safe-Torque-Off, IP20, FSA size.
| Parameter | Value |
|---|---|
| Weight | 2.27 kgs |

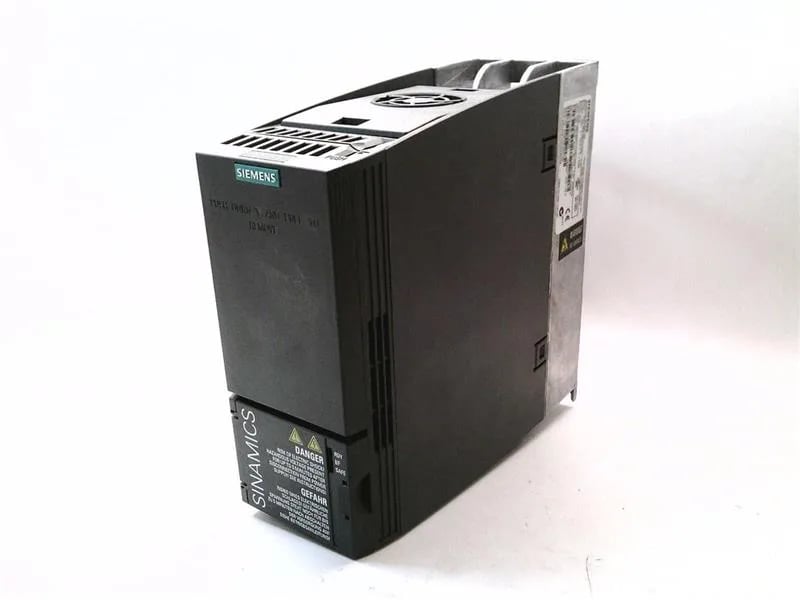

The Siemens 6SL3210-1KE15-8AP0 is a SINAMICS G120C compact drive rated for 2.2 kW output with a 150% overload capacity for 3 seconds — sized for a standard 2.2 kW 4-pole induction motor on a 380-480 VAC three-phase supply. Integrated filter class A meets conducted emission limits for industrial environments without an external EMC filter. The PROFIBUS DP fieldbus interface is built in, no option card required.
Rated power is 2.2 kW with 150% overload for 3 seconds. Input voltage range is 380-480 VAC three-phase, +10/-20%, 47-63 Hz.
Yes. Safe-Torque-Off (STO) is integrated, and PROFIBUS DP is built in — no option module required.
Sourced and quoted to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.
