Siemens 6SL3210-1KE22-6AB0 — AC Drives (VFD)

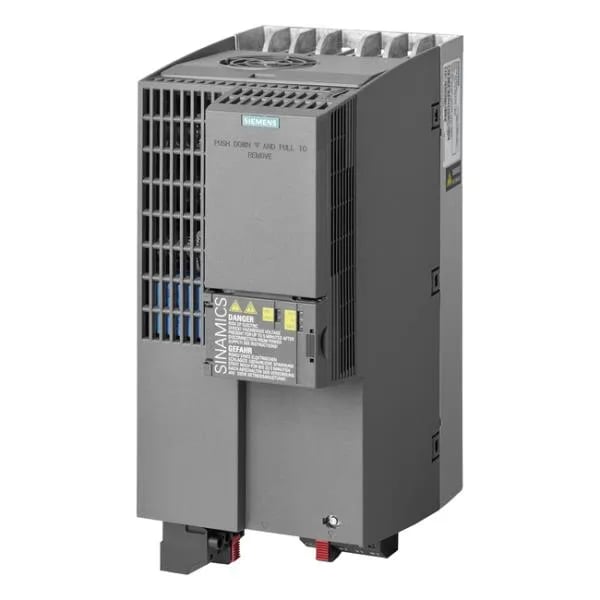

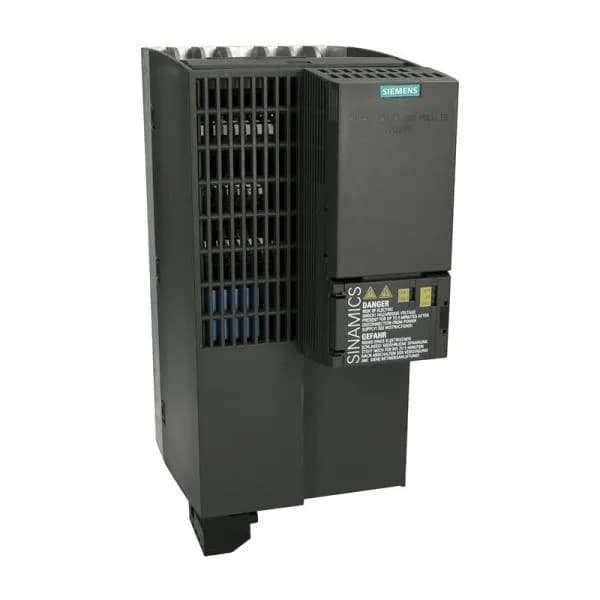

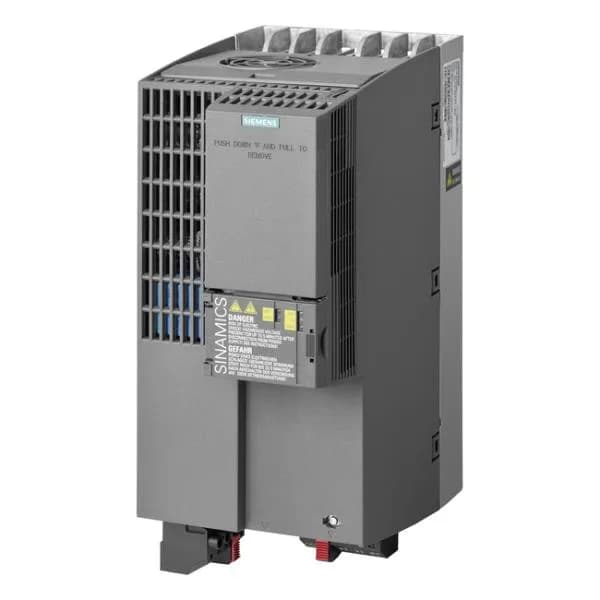

Siemens 6SL3210-1KE22-6AB0 SINAMICS G120C Drive, 11kW, 380-4

MPN6SL3210-1KE22-6AB0

Siemens SINAMICS G120C, 11.0kW, 380-480V 3AC, 150% overload for 3s, integrated filter class A, Safe Torque Off, USS/MODBUS RTU, IP20/UL Open Type, FSC 295x140x203 mm.

$2,659.19Ref. price · indicative, final on quote
Siemens 6SL3210-1KE22-6AB0 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026

Specifications

Mechanical

6SL3210-1KE22-6AB0 — Mechanical
ParameterValue
Weight5.50 kgs

Product details

Drive selection memo

The Siemens 6SL3210-1KE22-6AB0 is a SINAMICS G120C compact drive rated for 11.0 kW output with a 150% overload capability for 3 seconds — enough to handle high-breakaway-torque loads like a conveyor start or a pump clearing a blocked impeller. It runs on 380–480 V three-phase, 47–63 Hz, with an integrated Class A EMC filter, so it meets conducted emission limits for most industrial environments without an external filter. The Safe Torque Off (STO) function is built in, eliminating the need for a separate safety relay on the drive output. Fieldbus is USS and MODBUS RTU via the integrated port, covering the two most common serial protocols for PLC integration. The IP20 / UL Open Type enclosure means it is designed for installation inside a control cabinet — not for washdown or outdoor mounting.

Frequently asked questions

How do I get current pricing and availability for 6SL3210-1KE22-6AB0?

Submit an RFQ with your target quantity and ship-to location. Pricing and stock levels are confirmed at quote time through our independent distribution network — no automated price is listed here.

What does the 150% overload for 3 seconds mean in practice?

It means the drive can deliver 150% of its rated current (16.5 kW equivalent) for up to 3 seconds to start a high-inertia load or clear a momentary overload. After that, it must return to the 11.0 kW continuous rating or it will trip on overload.

Can this drive replace an older SINAMICS G120 without rewiring the power section?

The G120C has a different form factor (FSC) and terminal layout than the modular G120. Power wiring gauge and motor cable sizing are similar for 11 kW, but the control wiring and fieldbus connector differ. A direct drop-in is not guaranteed; review the terminal diagram against your existing panel before ordering.
