The Siemens 6SL3210-1NE15-8AL0 is a SINAMICS G120 Power Module PM230 rated for 2.2 kW under low overload (150% for 3 s, 110% for 57 s, 100% for 240 s) on a 380-480 VAC 3-phase supply at 47-63 Hz. This module needs a separate CU240B/E-2 or CU230P-2 Control Unit running firmware V4.4 or higher to operate; it does not support safety functions, so keep it on non-safety drive segments.

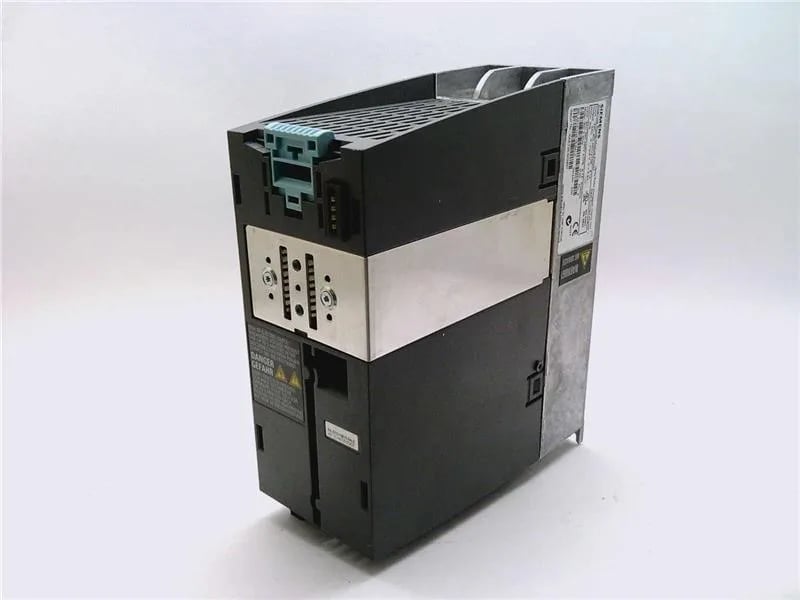

Siemens 6SL3210-1NE15-8AL0 SINAMICS G120 PM230, 2.2 kW, IP20
MPN6SL3210-1NE15-8AL0
Siemens SINAMICS G120 Power Module PM230, 6SL3210-1NE15-8AL0, 2.2 kW low overload, 380-480 VAC 3-phase, IP20, integrated Class A EMC filter, FSA frame, 1.36 kg.
$251.64Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 1.36 kgs |
Product details
Frequently asked questions
What control unit does 6SL3210-1NE15-8AL0 need?
It requires a CU240B/E-2 or CU230P-2 Control Unit with firmware V4.4 or higher. It will not work with other G120 control modules.
Does this PM230 support safety functions?
No, the PM230 variant does not support safety functions. Use a PM240 or PM250 for safety-capable drive segments.
MPN
6SL3210-1NE15-8AL0
