The Siemens 6SL3210-1PE11-8AL0 is a SINAMICS G120 power module from the PM240-2 family, designed for variable-speed motor control in industrial automation. It operates from a 3-phase 380-480 VAC supply (47-63 Hz) and delivers 0.37 kW under high overload (HO) or 0.55 kW under low overload (LO). The HO rating supports 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds — enough to handle short-duration peak loads like a conveyor start or a pump breakaway torque. The LO rating allows 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, suited for steady-duty fans or light conveyors. The built-in Class A EMC filter and integrated braking chopper simplify panel wiring: no external filter needed for first-environment installations, and the chopper allows dynamic braking with an external resistor for vertical loads or rapid deceleration. Ambient temperature range is 0 to +50 °C for HO operation and 0 to +40 °C for LO — derate above those limits.

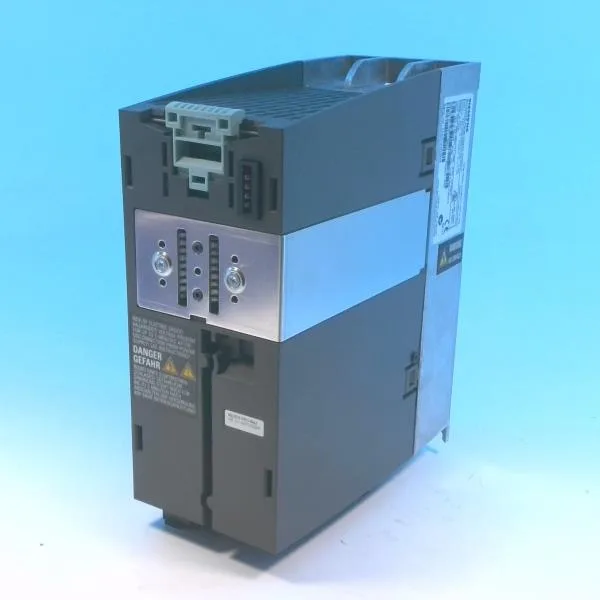

Siemens 6SL3210-1PE11-8AL0 SINAMICS G120 PM240-2, 0.37 kW HO
Siemens SINAMICS G120 power module PM240-2, standard with built-in Class A filter and braking chopper, 3AC 380-480 V +10/-10%, 47-63 Hz, output 0.37 kW high overload / 0.55 kW low overload, IP20, FSA, 196 x 73 x 165 mm, 0.68 kg.
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.68 kgs |
Product details
Frequently asked questions
Where can I buy 6SL3210-1PE11-8AL0 and how is it quoted?
This part is sourced through independent industrial automation distribution. Pricing and availability are confirmed at quote time against an RFQ — no stock count or price is published here.
What are the key ratings for 6SL3210-1PE11-8AL0?
It delivers 0.37 kW high overload (200% for 3 s, 150% for 57 s) or 0.55 kW low overload (150% for 3 s, 110% for 57 s) from a 3-phase 380-480 VAC supply, with built-in Class A EMC filter and braking chopper.
What control unit does this power module need?
The PM240-2 requires a separate SINAMICS G120 Control Unit (e.g., CU240E-2 or CU250S-2) that plugs onto the top interface. It is not sold with a control unit or operator panel.
