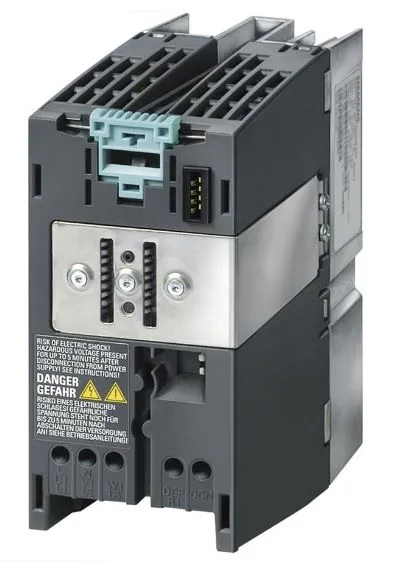

The Siemens 6SL3210-1PE16-1AL0 is a SINAMICS G120 Power Module PM240-2 with built-in Class A EMC filter and integrated braking chopper. It accepts 3AC 380-480 V +10/-10 %, 47-63 Hz input. Under high-overload duty it delivers 1.5 kW output with 200 % overload for 3 s, 150 % for 57 s, and 100 % continuous for 240 s at ambient 0 to +50 °C. Under low-overload duty it delivers 2.2 kW with 150 % for 3 s, 110 % for 57 s, and 100 % continuous for 240 s at ambient 0 to +40 °C. The FSA frame measures 196 x 73 x 165 mm (HxWxD) and is rated IP20 — intended for enclosure mounting, not washdown environments.
The IP20 rating means the module requires enclosure protection against dust and moisture — install inside a panel rated to at least IP54. The built-in braking chopper eliminates the need for an external brake resistor module for most applications, though a resistor must still be added at the DC bus terminals for dynamic braking. The Class A filter is integrated, so no external EMC filter is needed for first-environment (residential) compliance; for second-environment (industrial) installations the internal filter is sufficient.
