What this module is and what it drives

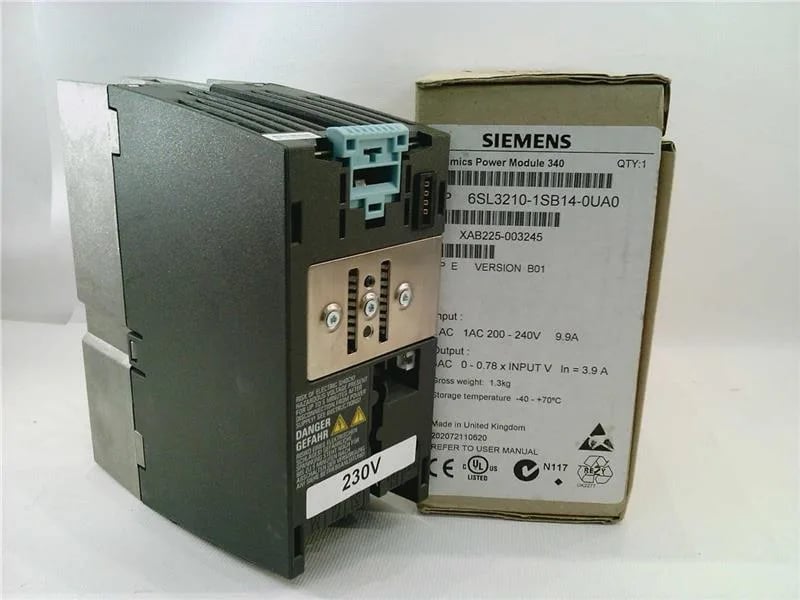

The Siemens 6SL3210-1SB14-0UA0 is a SINAMICS S120 Power Module PM340 — a spare-part drive unit that converts single-phase 200-240 V AC input into three-phase variable-frequency output for motor loads up to 0.75 kW (3.9 A). It's the blocksize FSA form factor with internal air cooling, so it mounts in a standard cabinet without external ducting. Let me show you why the single-phase input matters: this module is sized for small machines on a 1-phase supply — pumps, fans, conveyors — where you don't have 3-phase at the panel but still need a 3-phase motor drive.
Integration and wiring notes
Blocksize FSA is the smallest frame in the PM340 family — compact enough for a DIN-rail or backplate mount inside a control cabinet. Input is single-phase 200-240 V AC, 50/60 Hz; output is three-phase to the motor, 3.9 A continuous. Internal air cooling means you need clearance around the heatsink for natural convection — no forced-air fan required, but don't box it in tight. The 0.75 kW rating covers a standard 1 HP (0.75 kW) 4-pole induction motor; if you're driving a smaller motor, the drive will still run it, but the minimum motor current should be checked against the drive's minimum load spec.
