Power Module PM340, 0.75 kW

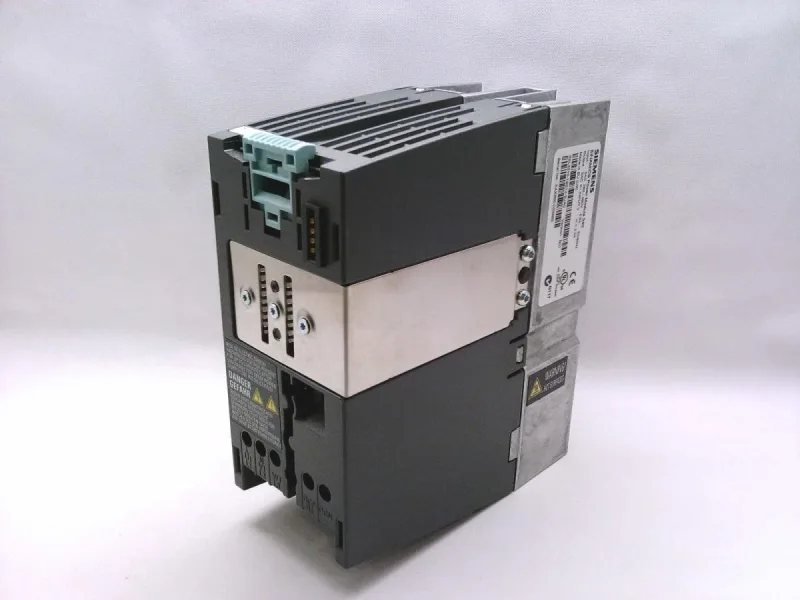

The Siemens 6SL3210-1SE12-2UA0 is a SINAMICS S120 Power Module PM340, blocksize FSA, delivering 2.2 A three-phase output at 0.75 kW from a 380-480 V 3AC, 50/60 Hz supply. Internal air cooling keeps the package compact for DIN-rail or panel mounting in a control cabinet.
This part carries a lifecycle stage of mature, meaning it is no longer in active new-product introduction but remains in the Siemens portfolio for service and replacement. The datasheet carries a revision date with Änderungen vorbehalten (subject to change).
Integration Notes
The blocksize FSA form factor is designed for panel integration with internal air cooling; ensure adequate clearance above and below the module for convection airflow. The PM340 accepts a 380-480 V 3AC line and outputs 2.2 A at 0.75 kW — sized for a small induction motor on a conveyor, pump, or fan load. No external braking resistor is included; for vertical loads or rapid deceleration, add the appropriate braking module per the SINAMICS S120 manual.
