Drive selection memo

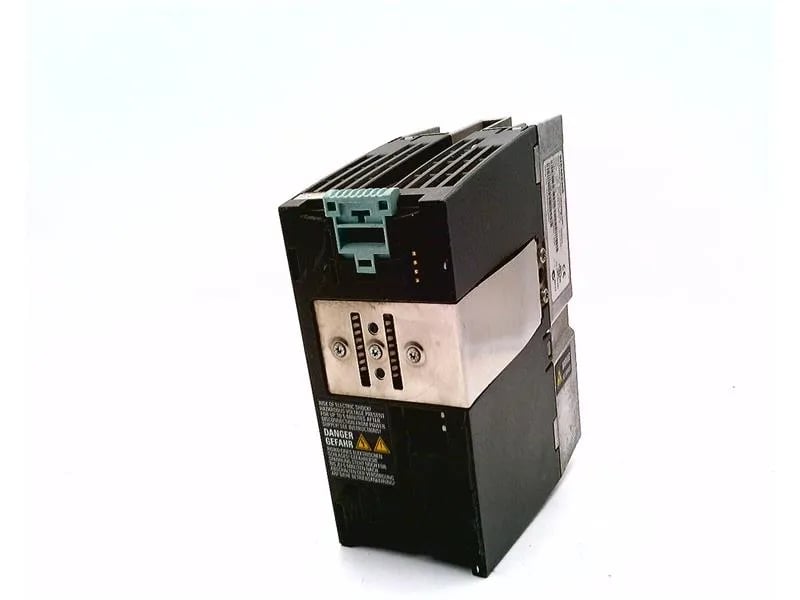

The Siemens 6SL3210-5BB13-7AV0 is a SINAMICS V20 spare-part drive rated for 0.37 kW on a 200-240 V 1-phase AC supply, with a 150% overload capability for 60 seconds. It integrates a C2 EMC filter, so it meets conducted emission limits for industrial environments without an external filter. The I/O complement — 4 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output — covers basic speed control and status feedback for a small conveyor or pump. Fieldbus is USS or MODBUS RTU, with a built-in Basic Operator Panel (BOP) for local parameter access. The IP20 / UL open-type enclosure means it mounts inside a control cabinet, not in a washdown zone.
Integration notes
Mounts in a standard cabinet on a DIN rail or screw panel. The frame size A footprint is 90 x 150 x 146 mm (WxHxD). Power wiring: 200-240 V 1-phase AC, -10/+10 % tolerance. The integrated C2 filter means no external EMC filter is needed for most industrial installations, but keep the motor cable short to stay within the filter's rated attenuation. The built-in BOP lets you commission parameters without a laptop. For MODBUS RTU, set the station address via the BOP; default baud rate is 19200 8N1. The 4 DI / 2 DO complement is enough for a simple start/stop, fault reset, and speed reference from a 0-10 V or 4-20 mA analog input.
