What this part is and what it does

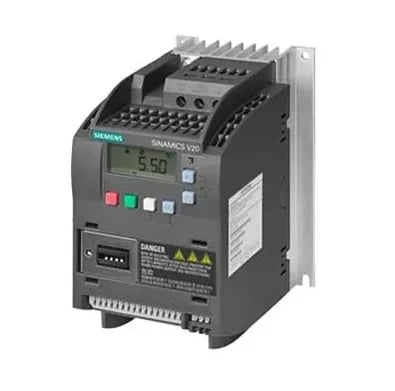

The Siemens 6SL3210-5BB13-7UV0 is a SINAMICS V20 variable frequency drive, designated as a spare part, rated for 0.37 kW on a 200-240 V 1-phase AC supply. It delivers 150% overload for 60 seconds, which is the standard V20 overload curve for short-duration starting or load spikes on a pump or conveyor. The I/O complement is 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output. Fieldbus connectivity is USS or MODBUS RTU via the built-in RS-485 port, and it includes a basic operator panel (BOP) for local parameter access. This is an unfiltered variant, so it lacks an internal EMC filter for the line side. For a CE-compliant installation in a domestic or light-industrial environment, an external filter is required. The IP20 / UL Open Type enclosure means it mounts inside a control cabinet, not in a washdown or outdoor location.
Lifecycle and sourcing reality
The datasheet carries a revision date of 18.03.2021, indicating the technical documentation has been stable for several years. No successor order code is published, so the 6SL3210-5BB13-7UV0 remains the direct spare for its application.
Integration notes for the panel builder
The drive is size A, with dimensions 90 x 150 x 146 mm (W x H x D). It mounts on a standard DIN rail or directly to a backplate. The IP20 rating means no additional sealing is needed inside a clean, dry enclosure. Single-phase 200-240 VAC input at -10/+10% tolerance. The unfiltered design requires an external line filter for conducted emission limits. The built-in BOP allows commissioning without a separate panel or software tool. For MODBUS RTU, the default baud rate is 19200 8N1; verify the master's settings before the first communication attempt.
