Drive selection memo

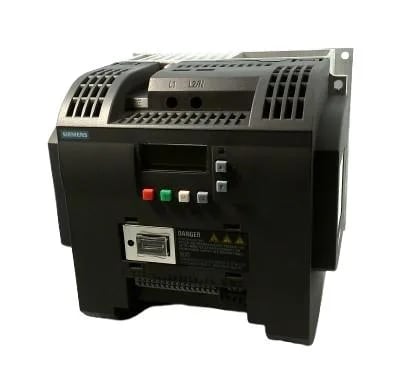

The Siemens 6SL3210-5BB23-0AV0 is a SINAMICS V20 variable-speed drive sized for a 3.0 kW motor on a 200-240 V single-phase supply. The 150% overload capability for 60 seconds handles short-duration peak loads like a conveyor start or pump breakaway torque without oversizing the drive frame. Built-in I/O covers most standalone applications: 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output. Fieldbus is USS or MODBUS RTU via the integrated RS-485 port — no option card needed for basic PLC communication. The integrated Class C2 EMC filter meets conducted emission limits for commercial and light-industrial environments. No external filter required for installations within the C2 boundary.
Panel fit and mounting
IP20 / UL open type enclosure. Dimensions are 184 x 182 x 169 mm (WxHxD) — size C frame.
