Siemens 6SL3210-5BE27-5CV0 — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Series | SINAMICS V20 basic converters |
| REACH art. 33 duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0,1 % (w / w) |
| Packaging dimensions (L x w x h) | 225.00 x 274.00 x 295.00 mm |
| Compliance with the substance restrictions according to RoHS directive | Since: 05-07-10 |
| Group code | R220 |
| Product group | 5681 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit. |
| Quantity unit | 1 Piece |
| Packaging quantity | 1 |
| Export control regulations | AL : N / ECCN : N |

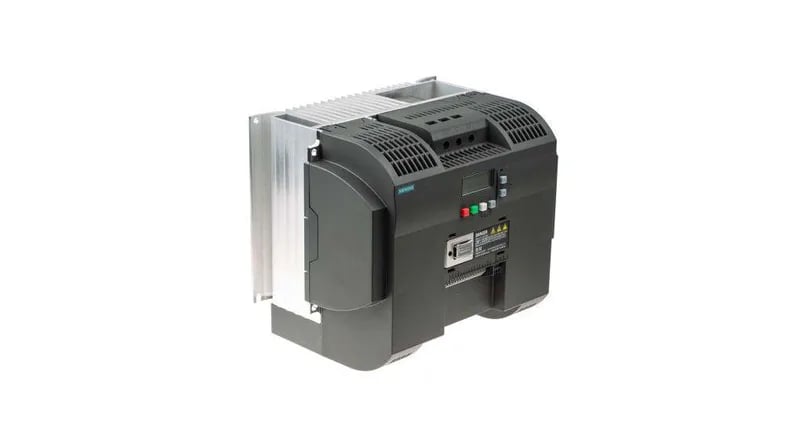

The 6SL3210-5BE27-5CV0 is a Siemens SINAMICS V20 basic converter rated 7.5 kW at 480 V three-phase input, 47-63 Hz, with IP20 protection and an integrated C3 EMC filter. It includes 4 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output, and USS/MODBUS RTU fieldbus. Siemens lists this drive as phase-out.
