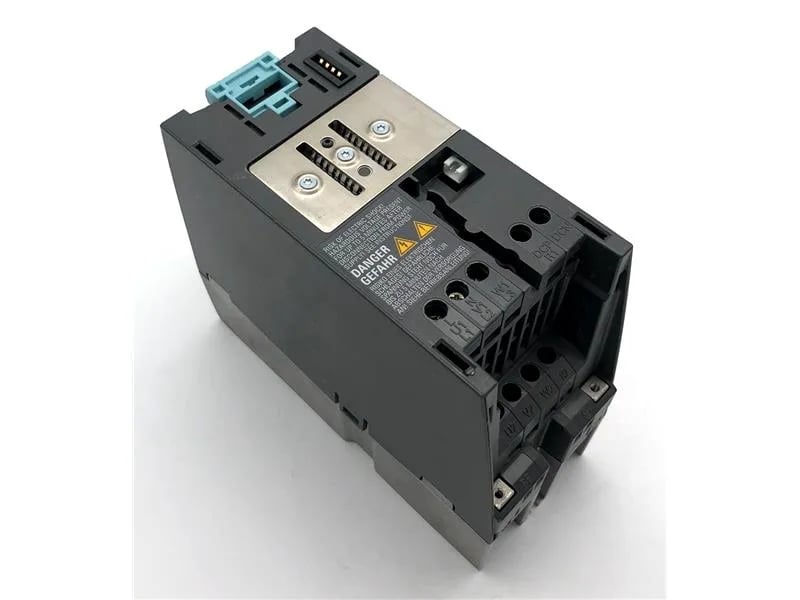

The Siemens 6SL3210-5EE22-2UV0 is a SINAMICS V20 variable frequency drive rated for 2.2 kW on a 380-480 VAC three-phase supply, supporting 47-63 Hz input. It delivers 150% overload for 60 seconds — enough headroom for starting a loaded conveyor or pump without oversizing the drive frame. I/O complement includes 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output. Communication is USS or Modbus RTU via the built-in BOP interface. No external option card required for basic network control.
Integration Notes
Size A footprint — 150 x 90 x 145.5 mm (WxHxD). IP20 / UL open type requires a clean, dry cabinet.
