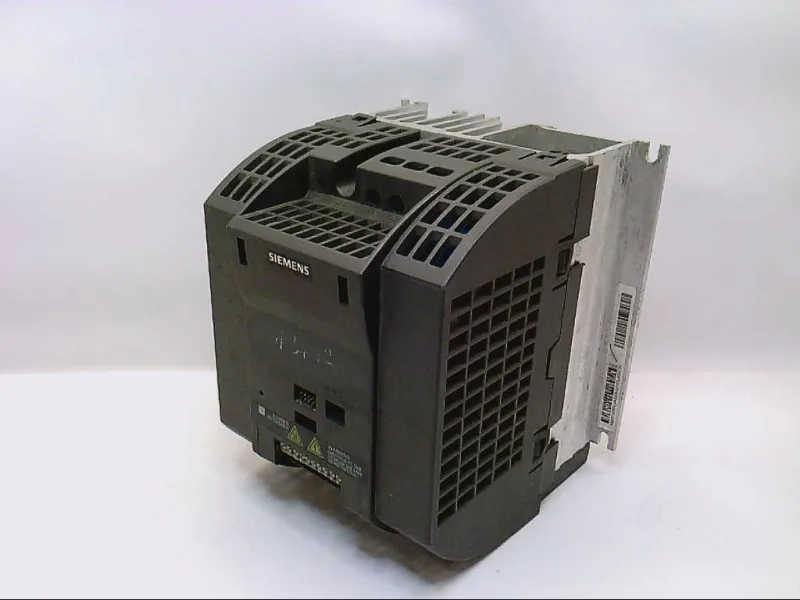

The Siemens 6SL3211-0AB12-5BA0 is a SINAMICS G110 CPM110 AC drive sized for 0.25 kW constant torque and 0.25 kW variable torque loads on a single-phase 200-240 VAC supply. The built-in Class B EMC filter covers conducted emissions for most residential and light industrial environments without an external filter. CT-overload rating of 150 % for 60 s handles short-duration peak loads like small conveyors or pumps during start-up.
Integration notes
IP20 protection requires mounting inside a panel or enclosure with a minimum of IP54 rating to keep dust and moisture off the power terminals. Ambient temperature range is -10 to +50 °C; above 40 °C the output current should be derated per the thermal curve in the manual. The drive ships without a Basic Operator Panel (BOP) and without an RS-485 interface, so parameterization requires a PC connection via the optional USS/MODBUS adapter or a BOP ordered separately.
