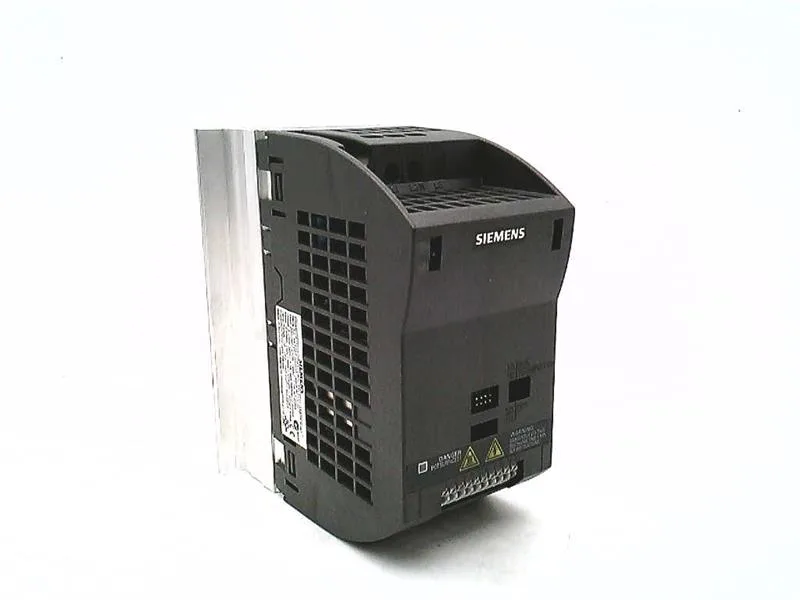

The 6SL3211-0AB15-5UA1 is a SINAMICS G110-CPM110 AC Drive from Siemens, unfiltered, rated for 200-240 V 1 AC input at 47-63 Hz. It delivers 0.55 kW in both constant-torque (CT) and variable-torque (VT) modes, with a CT overload capability of 150% for 60 seconds. Ambient operating range is -10 to +50 °C.
Integration Notes
The drive accepts a single-phase 200-240 VAC supply, which simplifies wiring in smaller panels where three-phase isn't available. The unfiltered variant means you'll need an external line filter if the application requires EMC compliance to conducted-emission limits. The IP20 enclosure keeps it confined to a cabinet; plan for adequate ventilation given the 0.55 kW dissipation at full load. No BOP (Basic Operator Panel) and no RS-485 interface are included — control is via the analog input only.
