Siemens 6SL3211-0AB17-5BA0 SINAMICS G110 Drive, 0.75 kW, 1AC

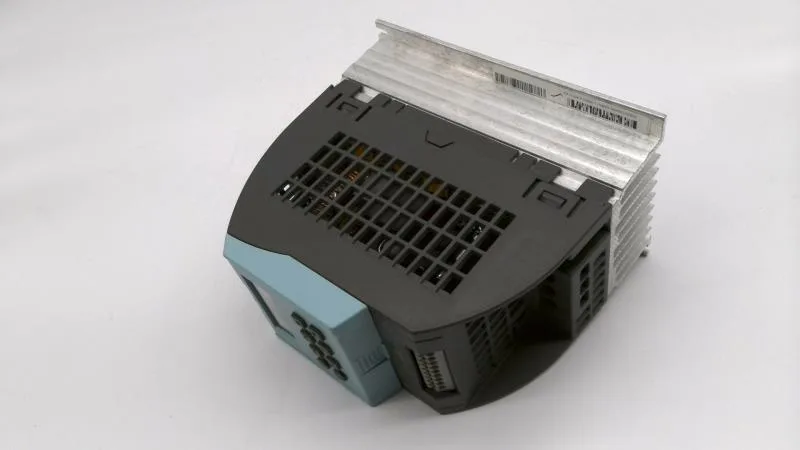

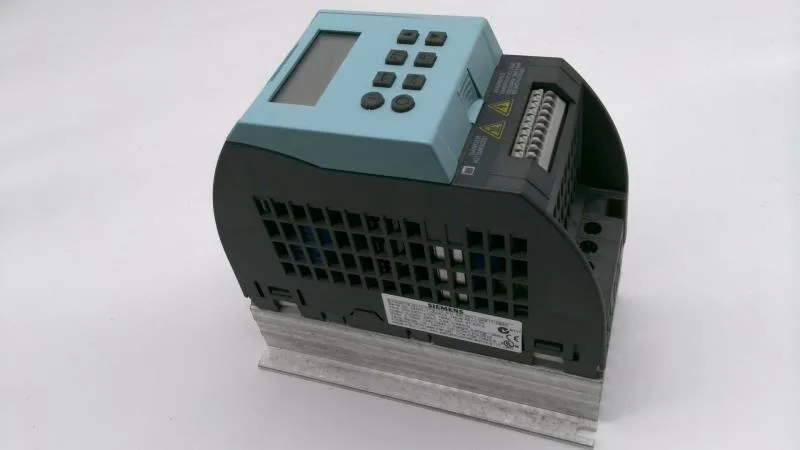

The Siemens 6SL3211-0AB17-5BA0 is a SINAMICS G110 CPM110 AC drive rated 0.75 kW on both constant-torque and variable-torque duty at 1AC 200-240 V input, 47-63 Hz. The built-in Class B EMC filter means it meets conducted-emission limits for residential and light-industrial environments without an external filter — saves a DIN-rail slot and a wiring step. Constant-torque overload capability is 150 % for 60 seconds, which handles short-duration peak loads like a conveyor restart or a pump breakaway torque without tripping. The drive includes an analog input for speed reference and is protected to IP20, so it mounts inside a control cabinet or enclosure — not in a washdown zone. Ambient temperature range is -10 to +40 °C; if your panel runs hotter, derate or add forced ventilation. No BOP (Basic Operator Panel) and no RS-485 interface are included on this variant, so speed setting and parameterization come through the analog input or via the optional BOP accessory.
