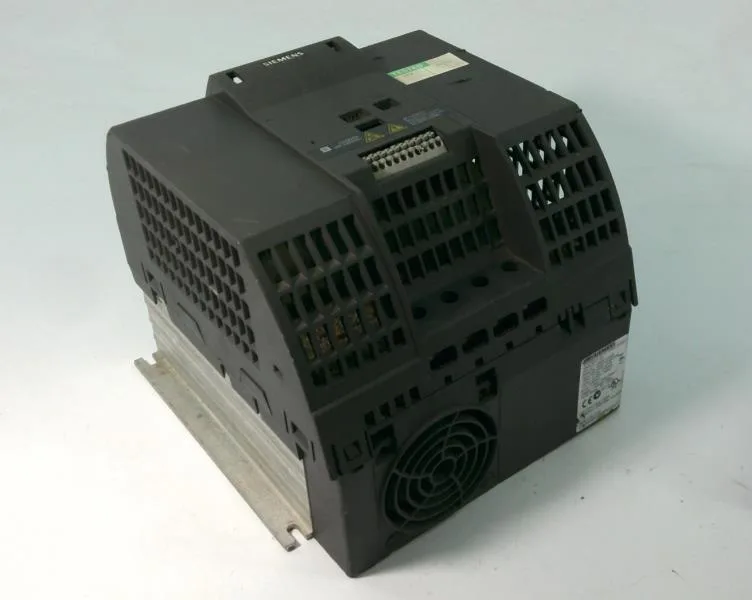

Siemens 6SL3211-0AB22-2UA0 SINAMICS G110 Drive, 2.2 kW, 1AC

The Siemens 6SL3211-0AB22-2UA0 is a SINAMICS G110 CPM110 AC drive rated for 2.2 kW in both constant-torque (CT) and variable-torque (VT) applications, fed from a single-phase 200-240 VAC supply at 47-63 Hz. The CT overload rating of 150% for 60 seconds means it can handle short-duration peak loads — useful for conveyors or pumps that see occasional jams or startup inertia — without tripping or needing a larger frame. The drive ships without an integrated EMC filter, without a Basic Operator Panel (BOP), and without an RS-485 interface. For a panel builder, that means the filter budget and communication card are separate line items; plan the panel layout accordingly if you need Class A or B EMC compliance or Modbus RTU over RS-485. Housed in an IP20 enclosure measuring 181 x 184 x 152 mm (HxWxD), this drive is intended for clean, dry electrical enclosures — not washdown or outdoor locations.
