What this drive is and where it fits

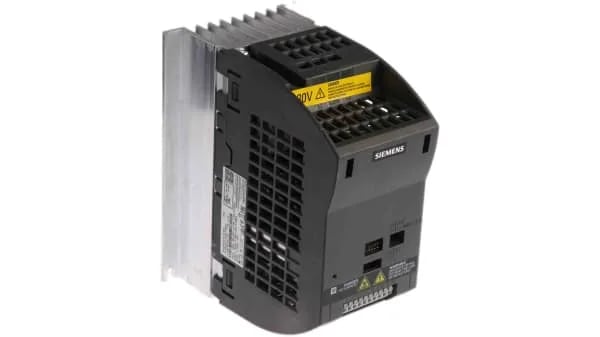

The Siemens 6SL3211-0AB23-0AB0 is a SINAMICS G110 CPM110 AC drive rated for 3.0 kW constant torque and 3.0 kW variable torque, fed from a single-phase 200-240 VAC supply (+10/-10%, 47-63 Hz). It includes a built-in Class A EMC filter, so no external filter is needed for standard industrial environments. The RS485 interface uses the USS protocol — a common serial link for Siemens PLCs and HMIs. The drive is sized for panel mounting with dimensions 181 x 184 x 152 mm (HxWxD) and IP20 protection, meaning it belongs inside a clean, dry enclosure, not on the machine frame in a washdown area.
Key ratings and what they mean for fit
The 3.0 kW CT rating means the drive delivers full rated torque continuously at low speeds — suited for a constant-torque load like a conveyor or positive-displacement pump. The VT rating matches fan and centrifugal pump profiles where torque demand drops with speed. The 150% overload for 60 seconds (CT) gives headroom for starting inertia or short-duration load spikes. The ambient temperature range of -10 to +40 °C is the operating window inside the panel; above 40 °C, derate according to the thermal curve in the manual. Without the optional BOP (Basic Operator Panel), parameterization is done via the USS serial link or the I/O terminals.
