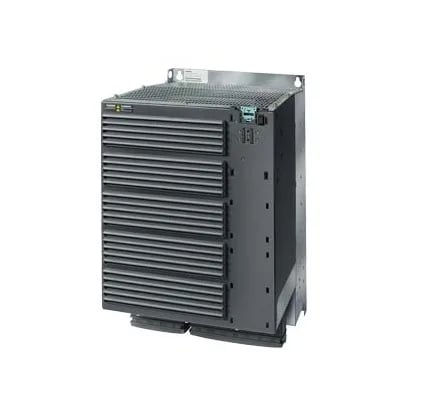

The Siemens 6SL3217-0CE32-2UA0 is a SINAMICS V10-1 AC drive rated for 22.0 kW output on a 3AC 380V supply (-15/+20%) at 48-52 Hz. Its overload capability is specified at 150% for 60 seconds and 100% for 240 seconds, with a 300-second duty cycle — this defines the thermal budget for applications like conveyors or pumps that see intermittent peak loads. The drive is delivered without an integrated line filter, so plan for external filtering if the installation must meet conducted emission limits per IEC 61800-3 Category C2 or C3.
Integration Notes
The FSD frame size measures 401 x 260 x 223 mm (HxWxD) and carries an IP21 rating with the Basic Operator Panel (BOP) fitted. IP21 means protection against solid objects larger than 12 mm and against dripping water — suitable for dry indoor panel environments, not for washdown or outdoor use. The ambient temperature range of 0 to +50 °C governs the continuous output current; if the enclosure ambient exceeds 40 °C, expect derating per the drive's thermal curve.
